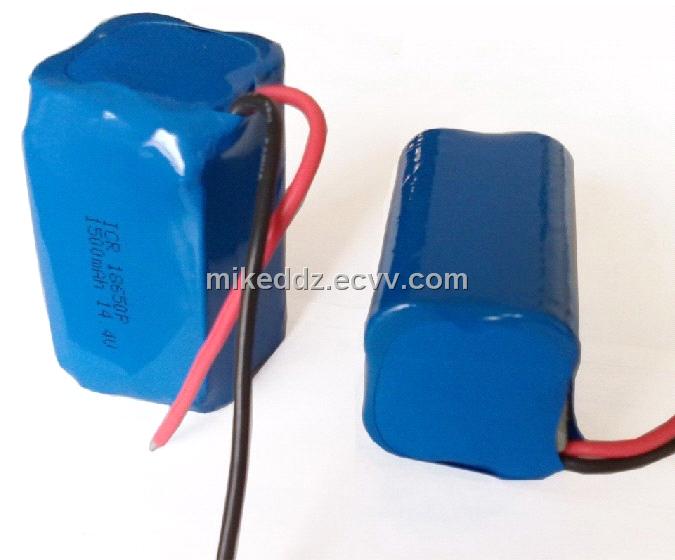

Powerful Li-ion Battery Pack 18650 with 20C 1500mAh 14.8V
| FOB Price: | 20.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece/Pieces per Day |
| Shipping: | FCA Shenzhen or FOB HK |
| Payment Terms: | L/C, T/T, Western Union, Other, others |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Standard Export Package, cartons 255*215*180mm |
Quick Details
- Brand Name: DDZ
- Model Number: ICR18650-14.4V-20C
- Rechargeable: Yes
- Type: Battery Pack
- Application: Industrial products
- Rate: 20C
- Voltage: 14.8V
- Capacity: 1500mAh
- Wire: SR Wires
- Weight: 176g
- Size: 37*42*68mm
- PVC: Blue or customized
- Connector: customized
- Lable: Customer's pointed
- Max.current: 15A
Specifications
18650-4S Powerful Li-ion Battery Pack with 20C 1500mAh 14.8V
1.Model Number:ICR18650-4S High power
with 1500mAh capacity, 14.8V;
25 degree Celsius discharge;
Continuous discharge current: 3A;
Burst discharge current: 15A;
25 degree Celsius discharge;
Continuous discharge current: 3A;
Burst discharge current: 15A;
2. Specification
|
No
|
Item
|
Rated Performance
|
Remark
|
|
|
1
|
Rated Capacity
|
Typical
|
1500mAh
|
Discharge at 0.2C after standard charge fully.
|
|
Minimum
|
1480mAh
|
|||
|
2
|
Nominal Voltage
|
14.4V
|
Mean operation voltage during standard discharge.
|
|
|
3
|
Voltage at end of
Discharge
|
11.0V
|
Discharge cut-off voltage.
|
|
|
4
|
Charging Voltage
|
16.8±0.05V
|
|
|
|
5
|
AC (1KHz) Impedance New Cell Max.(mW)
|
≤100mΩ
|
|
|
|
6
|
Standard Charge
|
Constant Current 0.5C
Constant Voltage 16.8V
0.01 C cut-off
|
Charge time : Approx 4.0h.
|
|
|
7
|
Standard Discharge
|
Constant current 0.2 C
end voltage 11.0V
|
|
|
|
8
|
Fast Charge
|
Constant Current 1C
Constant Voltage 16.8V
0.01 C cut-off
|
Charge time : Approx 2.0h.
|
|
|
9
|
Fast Discharge
|
Constant current 10 C
end voltage 11.0V
|
|
|
|
10
|
Maximum Continuous Charge Current
|
1.5A(1.0C)
|
|
|
|
11
|
Maximum Continuous Discharge Current
|
15A (10C)
|
|
|
|
12
|
Operation Temperature Range
|
Charge: 0~45°C
|
60±25%RH.
Bare Cell.
|
|
|
Discharge: -20~60°C
|
||||
|
13
|
Storage Temperature
Range
|
Less than 1 year: -20~25°C
|
|
|
|
Less than 3 months: -20~40°C
|
||||
|
14
|
Storage Humidity Range
|
60±25%RH.
|
|
|
|
15
|
Weight
|
Approx:176.0g
|
Whole product
|
|
|
16
|
Product Dimension
|
Height: Max.68.0 mm
|
|
|
|
Width:Max.37.0 mm
|
Initial dimension
|
|||
|
Thickness:42.0mm
|
||||
3. Environmental and Safety
The cell is approved according UL 1642, CE, FCC, ISO9001.
This battery meets the requirements of Battery Directives and the battery parts are RoHS-Compliant.
4. Packaging
Cardboard, cartons, less than 10kg/ctns.
Package: 130 Pcs Per Carton
Parton dimension: 440*415*180mm (L*W*H)
Gross Weight:8.6Kg/Carton
