Bulit-in IDcard access control/Card reader HF-F30

FOB Price:	1.00 - 150.00 USD/Piece
Supply Ability:	50,000 Piece/Pieces per Month
Shipping:	1 piece/color box, 6 pieces/carton
Payment Terms:	T/T, Paypal, Western Union

In Stock

Inquiry Now

Low Price Portable RFID Card Reader

Price:18.50-19.00 USD/Piece

Min. Order:10 Pieces
ACR1281U UPA Contactless Reader

Price:1.00-1,000.00 USD/Piece

Min. Order:1 Piece
UP-RF1500 Middle Range Card Reader

Price:10.00-200.00 USD/Piece

Min. Order:2 Pieces
ISO11784/5 Light RFID 134.2KHz FDX-B Animal Mic...

Price:35.00-55.00 USD/Unit

Min. Order:1 Unit
MS3398 1D RS232 USB Customized Android Bluetoot...

Price:110.00-145.00 USD/Piece

Min. Order:1 Piece
UHF Desktop Reader (USB Reader)

Price:0.10-1.00 USD/Piece

Min. Order:1 Piece

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Chongqing in China
Packaging Details:	1 piece/color box, 6 pieces/carton

Specifications

Introduction:

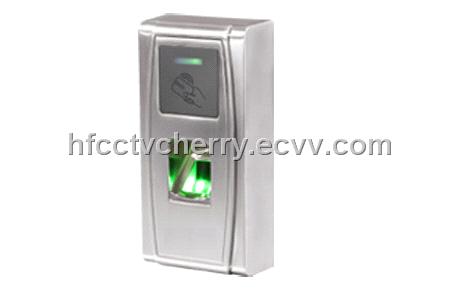

F30 is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance

using an advanced algorithm for reliability, precision and excellent matching speed. The F30 features the fastest

-based fingerprint matching algorithm and HF high-performance, highimage quality optical fingerprint sensor. The

device offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand.

The user can be enrolled by administrator card when the device works as a standalone access control. TCP/IP and

are available that the device can be used in different network. TCP/IP communication makes sure the data

transition between the device and the PC can be easily done within several seconds. F30 can be used in tough

because of the IP54 protection index and the wide range of operating temperature.

Features:

.Fingerprint reader with durable and highly accurate HF optical sensor

.1 touch a-second user recognition

.Stores 1,500 templates, 10,000 cards and 30,000 transactions

.Reads Fingerprint and/or Card

.Optional integrated smart card reader

.Built-in Serial and Ethernet ports

.Tamper-proofs switch and alarm outputs

.Request-to-exit and alarm contacts

.Real-time 1-touch data export 3rd party hosted & non-hosted applications

.Audio-Visual indications for acceptance and rejection of valid/invalid fingers

Specifications:

Fingerprint Capacity	1500 templates
ID card Capacity	10,000
Transaction Capacity	100,000
Hardware Platform	ZEM710
Communication	RS485, TCP/IP, USB-host
Access Control Interface for	3rd party electric lock, door sensor, exit button, alarm
Wiegand Signal	Input & Output
Stardard Access Control Function	Time Zone, Group, Multi-identification, Duress mode, Anti-passback
Optional Functions	Mifare, external USB keypad
Display	N/A
Power Supply	12V DC
Operating Temperature	-10 °C- 60 °C
Operating Humidity	10%-90%
Index of Protection	IP54
