Shenzhen CBS Electronic Technology Co., Ltd.
China Manufacturer with main products: LED Parking Sensor, LCD Parking Sensor, Reverse Radar, Parking Sensor, buzzer parking sensor, Speaker parking sensor, car parking sensor,... |

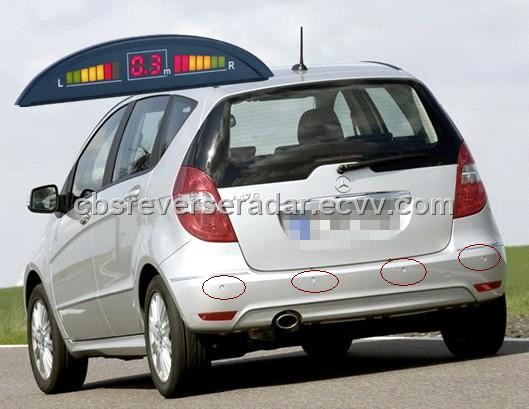

LED Sensor Parking for Honda Audi (CBS-02N)
| FOB Price: | 8.85 - 9.80 USD/Piece |
|---|---|
| Supply Ability: | 2,000 Piece/Pieces per Week |
| Shipping: | TNT UPS DHL FEDEX etc |
| Payment Terms: | L/C, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | color box packing and 18pcs/ctn or 40pcs/ctn with English manual |
Specifications
CBS-02N led sensor parking for Honda Audi
Parking Sensor, LED Parking Sensor,Car Parking Sensor System:
7 bands 3 colors digital LED display with bracket.
Detachable display and cable
Fit any make of car or vehicle, van, caravan, trailer etc.
sound ON/OFF switch
stage-by stage sound alarm to avoid collision
Digital meter distance mode
Directional indicator of left and right
Waterproof and shockproof, anti-fault information technology
More-stable two-angle sensor,horizontal and vertical for detection
All kinds of sensor colors and styles are avaiable
High quality and easy to install
Alarm:
|
Section
|
distance
|
region
|
Distance value
|
sound
|
Indicator color
|
|
1
|
100-250 c m
|
safe
|
1.0-2.50m
|
Bi-----Bi
|
Green
|
|
2
|
50-100 c m
|
Warning
|
0.5-1.00m
|
Bi-Bi-Bi
|
Yellow
|
|
3
|
20-50 c m
|
Dangerous
|
0.2-0.50m
|
BiBiBi
|
red
|
Technical Specification:
1)Car Entry Level Rear 4 Parking Sensor System
2) Sensor detection range: 20cm~2.5m
3) Display range: 0cm~2.5m
4) 22mm plastic flat
5) 8/6/4/3/2 sensor optional
6) Bi Bi Bi Alarm voice:>80dB.
7)Ultrasonic Frequency:40KHz
8) 3 color LED 4 channel w/ digital readout,Built-in buzzer
9) Rated Current:20-200mA
10) Power Input: 9~16V DC
11)Working temperature:-30~+70°C
12) Display working temperature:-20~+60°C
1)Car Entry Level Rear 4 Parking Sensor System
2) Sensor detection range: 20cm~2.5m
3) Display range: 0cm~2.5m
4) 22mm plastic flat
5) 8/6/4/3/2 sensor optional
6) Bi Bi Bi Alarm voice:>80dB.
7)Ultrasonic Frequency:40KHz
8) 3 color LED 4 channel w/ digital readout,Built-in buzzer
9) Rated Current:20-200mA
10) Power Input: 9~16V DC
11)Working temperature:-30~+70°C
12) Display working temperature:-20~+60°C
ACCESSORY:
Power Supply Cable 1PCS(clue 0.8M)
Sensor Cables 4PCS(clue 2.5M)
Display Cable 1PCS(clue 5M)
Buzzer Cable 1PCS
3M Self-Adhesive Tape or Velcro 1PCS
High Quality Driller 1PCS(22mm)
lnstallation Manual 1PCS
Sensor Spacers 4PCS
Power Supply Cable 1PCS(clue 0.8M)
Sensor Cables 4PCS(clue 2.5M)
Display Cable 1PCS(clue 5M)
Buzzer Cable 1PCS
3M Self-Adhesive Tape or Velcro 1PCS
High Quality Driller 1PCS(22mm)
lnstallation Manual 1PCS
Sensor Spacers 4PCS
Operation
* Start up reversing system, reversing lights flash and buzzer sounds "Bi", then parking sensor turns on automatically.
* When vehicle reverse away 2.50 meters from obstacle, digital LED shows obstacle place and distance
* Install LED
* Fix LED with 3M double glue sticker on a suitable place of driving room
* Install Control Box
* Fix Control Box with 3m double glue sticker in a suitable place in truck
* Wire Connection
* Lead the wire into vehicle truck suitable place through holes on vehicle and bundle wire, then connect detector, control box and color digital LED described as illustration. Finally connect the positive and negative power wire with the according color power wire on reversing light
* Test and Adjust
* After installation completion, to test according to "OPERATION". Free to choose the probe quantity, but shall connect probe according to label requirement.
* Start up reversing system, reversing lights flash and buzzer sounds "Bi", then parking sensor turns on automatically.
* When vehicle reverse away 2.50 meters from obstacle, digital LED shows obstacle place and distance
* Install LED
* Fix LED with 3M double glue sticker on a suitable place of driving room
* Install Control Box
* Fix Control Box with 3m double glue sticker in a suitable place in truck
* Wire Connection
* Lead the wire into vehicle truck suitable place through holes on vehicle and bundle wire, then connect detector, control box and color digital LED described as illustration. Finally connect the positive and negative power wire with the according color power wire on reversing light
* Test and Adjust
* After installation completion, to test according to "OPERATION". Free to choose the probe quantity, but shall connect probe according to label requirement.
