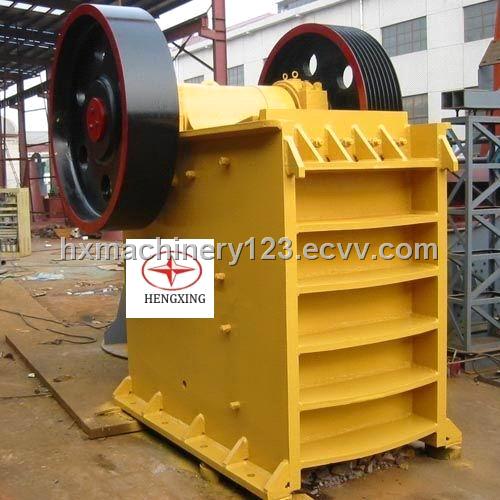

Stone Jaw Crusher for Mining Equipment
| FOB Price: | 5,000.00 - 20,000.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set/Sets per Month |
| Shipping: | 20 days after confirm the order |
| Payment Terms: | L/C, T/T, as requested |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Nude packing |
Specifications
Jaw Crusher:
Jaw crusher can be used to crush material, whose compression strength is not more than 320Mpa. PE/PEX jaw crusher is mainly used in various industries, such as mining, smelting, road and railway construction, water conservation and chemical industry etc. PE Series is used in primary crushing, while PEX series is used in secondary crushing and fine crushing.
Jaw crusher can be used to crush material, whose compression strength is not more than 320Mpa. PE/PEX jaw crusher is mainly used in various industries, such as mining, smelting, road and railway construction, water conservation and chemical industry etc. PE Series is used in primary crushing, while PEX series is used in secondary crushing and fine crushing.
jaw crusher composition-structure
It is made up of frame, eccentric shaft, grooved wheel, flywheel, moving jaw, side guard plate, toggle plate, toggle backseat, adjusting screw, returning spring, fixed jaw plate and moving jaw plate. Toggle plate is of safety function.
It is made up of frame, eccentric shaft, grooved wheel, flywheel, moving jaw, side guard plate, toggle plate, toggle backseat, adjusting screw, returning spring, fixed jaw plate and moving jaw plate. Toggle plate is of safety function.
Working Principle of PE&PEX jaw crusher:
This crusher adopts the electric motor as the power. The eccentric shaft is revolved by an electric motor through v-belts. It causes the swing jaw following the preconcerted path to crush the feeding material. Thus the material will be crushed in the crushing chamber which is composed of the stationary jaw plate, swing jaw plate and the liner plate. The material is discharged from the lower part of machine that is what you want.
This crusher adopts the electric motor as the power. The eccentric shaft is revolved by an electric motor through v-belts. It causes the swing jaw following the preconcerted path to crush the feeding material. Thus the material will be crushed in the crushing chamber which is composed of the stationary jaw plate, swing jaw plate and the liner plate. The material is discharged from the lower part of machine that is what you want.
The Features and Benefits of Jaw Crusher:
1.Simple structure and reliable operation
2.Easy maintenance and low operating cost
1.Simple structure and reliable operation
2.Easy maintenance and low operating cost
3.high crushing and even product size ratio.
4. we have both of steel-welded plate jaw crusher and cast steel jaw crusher
Main technical specification of Jaw crusher :
4. we have both of steel-welded plate jaw crusher and cast steel jaw crusher
Main technical specification of Jaw crusher :
| Model | Max feeding size(mm) | Performance | Speed(r/min) | Power(kw) | Overall dimensions(L×w×h)(mm) | Weight(kg) | |
| Adjustable range(mm) | Capacity(M3/h) | ||||||
| PE150×250 | 125 | 10-40 | 1-3 | 285 | 5.5-7.5 | 922×745×933 | 700 |
| PE200×300 | 165 | 20-70 | 2-8 | 265 | 11 | 1056×1100×1120 | 800 |
| PE250×400 | 210 | 20-80 | 5-20 | 310 | 15-18.5 | 1108×1140×1392 | 3000 |
| PE400×600 | 340 | 40-90 | 10-40 | 275 | 30 | 1700×1732×1392 | 7200 |
| PE350×750 | 290 | 30-55 | 20-50 | 300 | 37 | 1900×1806×1808 | 8900 |
| PE500×750 | 425 | 50-100 | 34-68 | 275 | 55 | 2050×1860×2145 | 11320 |
| PE600×900 | 480 | 75-200 | 40-120 | 255 | 75 | 2792×2168×2250 | 17600 |
| PE750×1060 | 630 | 80-200 | 80-160 | 250 | 90 | 4180×2560×3070 | 30530 |
| PE900×1200 | 750 | 100-200 | 110-200 | 250 | 110 | 5200×2900×3500 | 50000 |
| PE1000×1200 | 850 | 195-265 | 315-500 | 200 | 110 | 3480×2876×3330 | 55000 |
| PE1200×1500 | 1020 | 150-300 | 400-800 | 180 | 160 | 4200×3300×3500 | 100000 |
| PEX150×750 | 125 | 10-40 | 5-15 | 300 | 15 | 1220×1480×1180 | 3600 |
| PEX250×1000 | 210 | 15-55 | 10-32 | 300 | 37 | 1580×1992×1380 | 7350 |
| PEX250×1200 | 210 | 15-60 | 12-38 | 300 | 37 | 1730×2192×1380 | 8700 |
| PEX300×1300 | 250 | 20-90 | 16-65 | 300 | 55 | 1930×2400×1747 | 11600 |
