Specifications

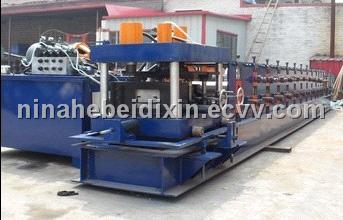

C Purlin Roll Forming Machine
The C purlin formed by this C Purlin Machine has many advantages, such as well compressive strength and flatness, automatic measuring, cutting and punching, high-level of automation and convenient installation. It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like plant, warehouse, locomotive shed, hangar, exhibition building, theatre, stadium, roofing load-bearing board and wall surface support of arbour. This machine is composed of manual stacker, pedestal of stacker, feed leading table, flattening device, hydraulic station, computer control box.
Parameter
1. material of frame: 350mm H shape steel welding
2. middle plate thickness: 20mm
3. step of forming roller: 12 steps
4. roller material: 45# forged steel, plated hard chrome on the surface of roller with thickness 0.05
5. shaft material: 45# steel, quenching and tempering treatment
6. diameter of shaft: 80mm
7. drive type: chain and gear
8. model number of bearing: 6214
9. speed reducer: 8# cycloid reducer
10. main motor power: 11kw
11. voltage: 380V 50Hz 3Phase or as your request
12. suppress thickness: within 3mm
13. processing speed: 8-10m/min
14. razor blades material: Cr12 quenching 58-62°
15. installation sizes: 8.0m*1.2m*1.3m
16. electric control system: entire machine controller by PLC
