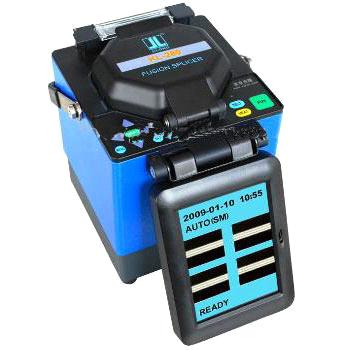

JiLong KL-280 Fusion Splicer

Payment Terms:	T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China

Specifications

Features:
Fiber core can be display clearly
SingleX or Y view and X & Y view simultaneously
Auto check quality of cleaved end face
Auto select best splicing program
9 seconds splice time and 30 seconds heat time
Small bulk and light weigh
5 inch color LCD monitor with clear digital image display
Simple Operation menu

Model	KL-280
Applicable fibers	SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655)
Fiber cleaved length	8~16mm (Coating diameter: 250µm) 16mm (Coating diameter: 250 ~ 1000µm)
Fiber diameter	Cladding diameter: 80 ~150µm Coating diameter: 100~ 1000μm
Fiber Count	Single
Fiber aligning method	Core aligning
Return loss	＞60dB
Actual average splice loss	0.02dB (SM),0.01dB (MM), 0.04dB (DS),0.04dB( NZDS)
Splicing mode	auto
Splicing mode	12(templet), 188(user)
Typical Splicing time	Typical 9 sec, with standard SM fiber
Protection sleeve length	60mm, 40mm and a series of micro sleeves
Storage of splice result	5000 results, 3 parameter per result
Tension test	2N
Fiber display and magnification	400X (X or Y view), 200X (X and Y view)
Tube heating time	Typical 30 sec
Electrode life	2500
No.of splice/heating with battery	Typical 130 cycles (splice/tube heat) with inner Li-battery
Display screen	5 inch color LCD monitor
Image change over	The fiber image is turned upside down
Terminals	RS 232
Operating condition	0 ~ 5000m above sea level,0 ~ 95%RH and -10～50℃,respectively,Max. wind velocity of 15m/s
Power supply	AC 100-240V with AC adapter;inner Li-battery(6600mAH)
Dimensions	150mm(L) x150mm (W) x160mm (H)
Weight	3.52 Kg including battery
