80W bluetooth HIFI amplifier support APTX
| Payment Terms: | T/T |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications
HIFI bluetooth amplifier,high power bluetooth amplifier,audio bluetooth amplifier
High performance large power ,bluetooth chip CSR BC08 ,support APTX,long transmitting distance can reach MAX 20Meters.
High performance large power ,bluetooth chip CSR BC08 ,support APTX,long transmitting distance can reach MAX 20Meters.
1. Introduce

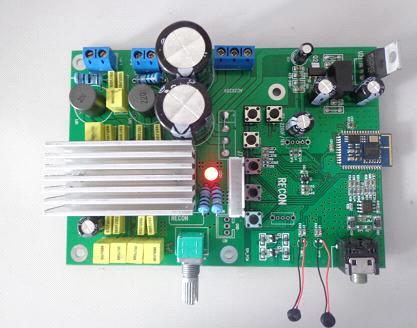

SL-BG01 is new stereo class T amplifier with bluetooth, it is 80W(4ohm) continuous average per channel class-T digital audio power amplifier, class-T amplifiers offer both the audio fidelity of Class-AB and the power efficiency of class-D amplifier. Bluetooth circuit used CSR chip, can pairing with any Bluetooth device.
Feature
Working Voltage: Dual power supply AC 20V or DC +/-22V
Output Power: L and R channel 2*80W(MAX)
Output impendence: 4~8Ω
Low distortion
Wide power bandwidth
Output Pin Short-Circuit Protection
Thermal protection with parole circuit
Working efficiency: 90%
Frequency: 20Hz to 50KHz
MAX output current: 8A
Components use high quality parts
Bluetooth module is a Max.4dBm( Class2 ) module.
Fully Qualified Bluetooth v4.0.
Integrated 16-bit Stereo Audio CODEC 95dB SNR for DAC.
Wideband speech supported by HFP v1.6 Profile and MSBC codec.
Multipoint HFP connection to 2 phones for voice.
A2DP connection to 2 A2DP source device for music playback.
SBC, MP3, AAC, APTX decoder support.
HSP v1.2/ HFP v1.6/ A2DP v1.2/ AVRCP v1.4
Bluetooth used Isolated Power Supply
Support mute function
Support key operation and outer key connection
RoHS compliant.
