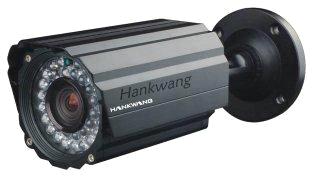

>Products Catalog > IR Bullet Cameras > Waterproof CCTV IR Camera Auto Iris Korean Lens 36 Led 560TVL
Related products from verified members
| Place of Origin: | Beijing in China |
|---|
Specifications
| 1/3" Sony Color Super HAD CCD | ||||||||
| High Resolution : 560 TV Lines | ||||||||
| Sens-up X256 | ||||||||
| Day & Night, Privacy Function | ||||||||
| Anti-Ghost DNR | ||||||||
| SS-WDR (DRC) | ||||||||
| Controlled by OSD Menu |
| Specifications | HKR-30636HVN1 | |||||||||||||||
| Image Sensor | 1/3" Sony Color Super HAD CCD, 410K Pixels | |||||||||||||||
| Total Pixels | N: 811(H) x 508 (V) / P: 795 (H) x 596 (V) | |||||||||||||||
| Effective Pixels | N; 768(H) x 494 (V) / P: 752 (H) x 582 (V) | |||||||||||||||
| Scanning System | N: 525 (H) Lines, 2:1 Interlaced / P :625 (H) Lines, 2:1 Interlaced | |||||||||||||||
| Synchronization | Internal | |||||||||||||||
| Resolution | COLOR : 560 TV Lines (Typ.) | |||||||||||||||
| Video Output | VBS : 1.0Vp-p, 75Ω composite | |||||||||||||||
| S/N Ratio (Y signal) | 52dB (AGC Off, Weight On) | |||||||||||||||
| Minimum Illumination | 0.00 lux ( IR ON ) | |||||||||||||||
| Backlight Compensation | BLC / D-WDR/ HLM / OFF Selectable | |||||||||||||||
| Day & Night Selection | COLOR / Black & White / EXT | |||||||||||||||
| Gain Control | LOW / MIDDLE / HIGH / OFF Selectable | |||||||||||||||
| White Balance | ATW1 / ATW2 / AWC / Manual | |||||||||||||||
| Electronic Shutter Speed | N : 1/60 sec ~ 1/120, 000 sec / P :1/50 sec ~ 1/120, 000 sec | |||||||||||||||
| Sense-Up | ON / OFF (Selectable Limit x2 ~ x256) | |||||||||||||||
| OSD | Built-in | |||||||||||||||
| Motion Detection | ON(16x12 grid) / OFF | |||||||||||||||
| IRIS Control | DC | |||||||||||||||
| Lens Shading | / | |||||||||||||||
| DNR | ON (0 ~ 32 Level Adjustable) | |||||||||||||||
| Privacy | ON / OFF (8 Zone) | |||||||||||||||
| Mirror (H-REV) | ON / OFF | |||||||||||||||
| Flip (V-REV) | ON / OFF | |||||||||||||||
| STILL | ON / OFF | |||||||||||||||
| Sharpness | ON / OFF (Level Adjustable) | |||||||||||||||
| Saturation | ON / OFF (Level Adjustable) | |||||||||||||||
| Digital Zoom | ON (x1 ~ x256) / OFF | |||||||||||||||
| Parking Line | / | |||||||||||||||
| Communication | / | |||||||||||||||
| Blemish Compensation | 128 points | |||||||||||||||
| Lens | 3.5~16mm auto iris Korean lens | |||||||||||||||
| IR LED | 36pcs | |||||||||||||||
| Operating Temp. | -10℃~ +50℃[14°F ~ 122°F] | |||||||||||||||
| Operating Humidity | 30 ~ 80% RH | |||||||||||||||
| Power Source | DC 12V ±10%, Max. 2.0W | |||||||||||||||
| Dimensions | 145x 90 x 88 mm | |||||||||||||||
| Weight | 1300 | |||||||||||||||
