Ceramic Fiber Module

Supply Ability:	1,000 Ton per Year
Shipping:	BY SEA
Payment Terms:	T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	PALLET

Specifications

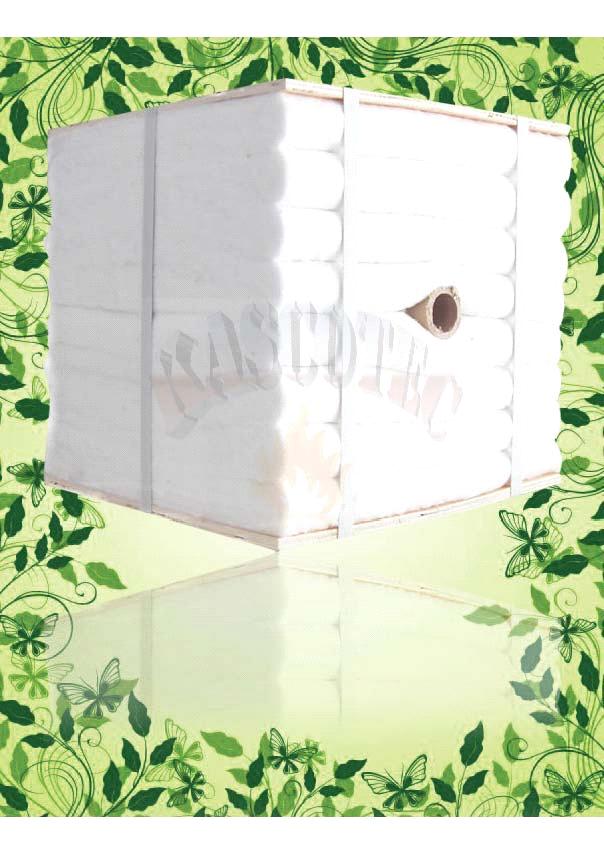

Ceramic Fiber Module

Kasco^TM Ceramic Fiber Module are designed and engineered to apply on many types of kilns and heat processing equipments.Each ceramic fiber module(block)is a continues folded inorganic spun blanket under compression.It's prevent heat loss,increasing the furnace productivity and reducing maintenance costs.Installation is quickly and easily completed by contractors or plant personnel who have received basic training.

Specification

		KA-CF-031000	KA-CF-031260	KA-CF-031430	KA-CF-031500	KA-CF-031600
Temperature(℃)		1000	1260	1430	1500	1600
Color		White	White	White	Green	White
Density(kg/m³)		192/210	192/210	192/210	192/210	192/210
Thermal conductive(W/mK)	400℃	0.09	0.07	——	——	——
	600℃	0.15	0.12	0.13	0.13	0.06
	800℃	0.22	0.16	0.2	0.19	0.1
	1000℃	——	——	0.29	0.26	0.14
Shrinkage(Less than CT200℃*8H)		2%	2%	2%	2%	1%

Packing

Dimension (MM)			Packing
Length	Width	Thickness	Carton
			Pcs/cartion	Carton Dimension(mm)
300	300	150	96	102012201220
		200	80	102012201220
		300	48	102012201220
Special sizes are available for specific needs

Characteristics

• Fast installations
• Efficient attachment design
• Gap-free lining
• Requires less maintenance
• Several anchor systems
• Excellent thermal stability
• Fast thermal cycling (heat up/cool down)

Applications

• Shuttle Kiln
• Ethylene Furnaces
• Convection Boxes
• Reformers
• Reheat Furnaces
• Steel Soaking Pit Covers
• Ladle Preheat Covers
• Forge Furnaces
• Incinerators
