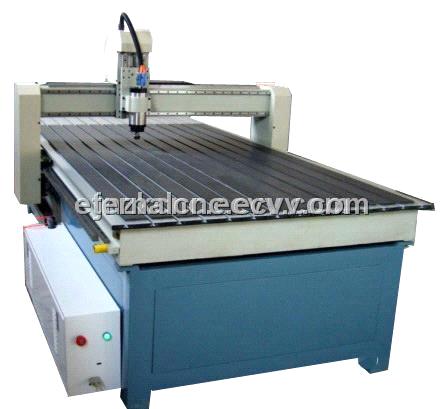

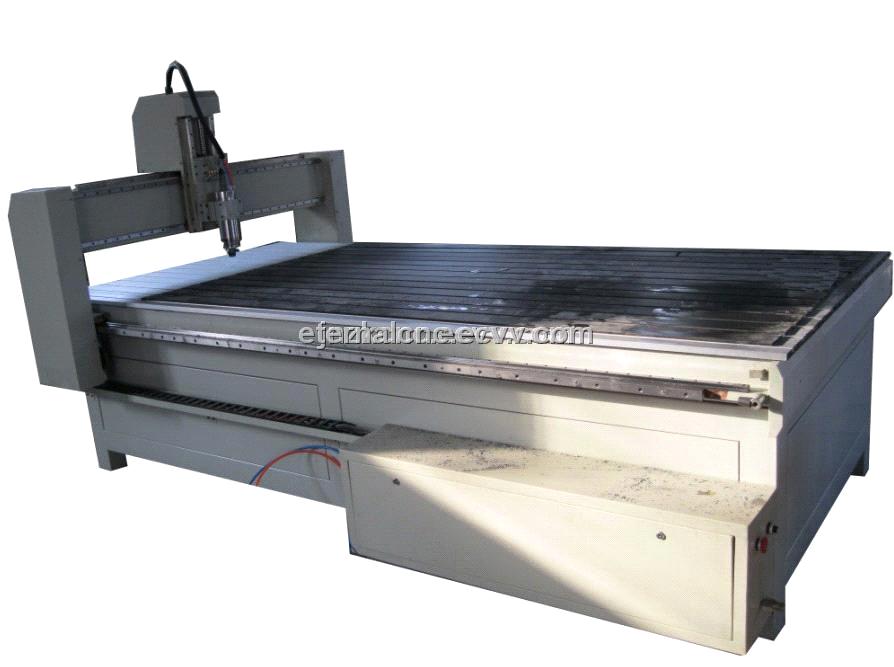

3D CNC Wood Engraver with Dust Collector SafeBuy Supplier Member

FOB Price: 10.00 - 10,000.00 USD/Set
Supply Ability: 1,000 Set/Sets per Year
Shipping: 14 DAYS
Payment Terms: L/C, T/T, Western Union
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Packaging Details: PLYWOOD PACKAGE

Specifications

Cnc machine parameter:

                                  CNC Router machine EM25-B
Items
parameters

Working areas
X
1300mm
Y
2500mm
Z
200mm
Transmission
systems
X
Rack gear and pinion drive
Y
Rack gear and pinion drive
Z
Ballscrew drive
Guide rails
system
X
Linear square rails
Y
Linear square rails
Z
Linear square rails


Spindle
Power
3.0KW
Speed
24000rpm
Cooling type
Water cooling
Origin
Jiangsu,China


Drive systems
X
Stepper motor with driver
Y
Stepper motor with driver
Z
Stepper motor with driver
Servo motors and drivers
Made in China
Fixtures
Clamp
Machine body
Welded structurer steel pipe
Software envorionment
Windows98/2000/XP
Control systems
NC studio control system/DSP offline control system
Compatible files format
G code;u00;mmg;plt
Compatible software
UcancamV8/Type3/Artcam
Working voltage
AC380V/50-60HZ 3Phase
Table size
1440*3040mm
Max travel speed
35m/min
Max engraving speed
30m/min
Interface type
USB
Dust absorption
Dust collector(optional)
Processing materials
Wood,plastic,glass,metal,stone and so on
Optional
Italy HSD spindle
vacuum table system
dsp offline control system
Machine featurers:

Profiled steel welded lathe body .stabilizing treated under high tempreturer. Excellent rigidity and vigorous strength ability.

Y axis drived by double motors to ensure it's stability and powerful

High precision rack gear and pinion drive transmission system to ensure it's high working speed and strong power.

Imported taiwan HIWIN linear square rails with high precision,heavy work load and long service time.

Best machnical and electric parts design with well brand parts minimize breakdown rate.
