Shenzhen LASUN Network Cabling Co., Ltd.
China Manufacturer with main products: LAN Cabel, Network Cabel, Optical Fiber, Patch Panel |
Related products from verified members
| Place of Origin: | Guangdong in China |
|---|
Specifications
P/N:L10502

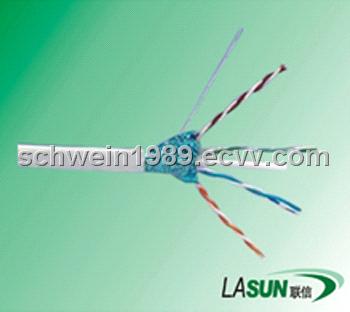

Cat6 FTP lan cable 305m
)Product Description
Rated temperature:60,75
Bare solid of stranded copper conductor
Colour-coded PE insulation
Rip cord(optional)
PVC or LSOH jacket
Flammadbility Grade: CMX,CM,CMR
Standard: UL444, TIA/ETA568B
Cat6 FTP lan cable 305m
)Product Description
Rated temperature:60,75
Bare solid of stranded copper conductor
Colour-coded PE insulation
Rip cord(optional)
PVC or LSOH jacket
Flammadbility Grade: CMX,CM,CMR
Standard: UL444, TIA/ETA568B
2) Construction
Conductor:0.574mm Bare Copper
Insulation:1.05mm HDPE
No. of Pairs:4
Shield:Al foil
Jacket: 6.4mm PVC
Conductor:0.574mm Bare Copper
Insulation:1.05mm HDPE
No. of Pairs:4
Shield:Al foil
Jacket: 6.4mm PVC
3) Characteristics
Impedance: 100+/-15 Ohms
Velocity of Propagation: 65%
SRL: >=20dB (1 to 200 MHz)
>=15dB (200to 550 MHz)
Impedance: 100+/-15 Ohms
Velocity of Propagation: 65%
SRL: >=20dB (1 to 200 MHz)
>=15dB (200to 550 MHz)
4) Attenuation 20(dB/100M)
1MHz 1.9
4MHz 3.7
8MHz 5.3
10MHz 5.9
16MHz 7.5
20MHz 8.4
25MHz 9.5
31.25MHz 10.6
62.5MHz 15.4
100MHz 19.8
155MHz 25.1
200MHz 29.0
250MHz 32.8
300MHz 36.4
350MHz 39.8
400MHz 43.0
450MHz 46.3
500MHz 48.9
550MHz 51.8
1MHz 1.9
4MHz 3.7
8MHz 5.3
10MHz 5.9
16MHz 7.5
20MHz 8.4
25MHz 9.5
31.25MHz 10.6
62.5MHz 15.4
100MHz 19.8
155MHz 25.1
200MHz 29.0
250MHz 32.8
300MHz 36.4
350MHz 39.8
400MHz 43.0
450MHz 46.3
500MHz 48.9
550MHz 51.8
5)Application:
10 Base-T
100 Base-T4
100 Base-TX
100VG-AnyLAN
1000Base-T
ATM
10 Base-T
100 Base-T4
100 Base-TX
100VG-AnyLAN
1000Base-T
ATM
