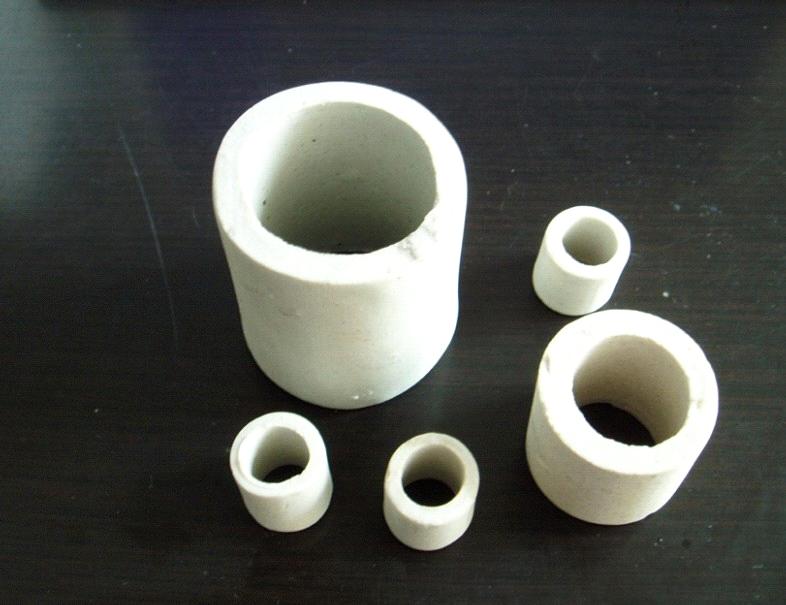

Ceramic Raschig rings

Inquiry Now

Related products from verified members

zirconia ceramic peeler cartrige

Price:0.24-0.31 USD/Piece

Min. Order:2000 Pieces
High Hardness Alumina Ceramic Ball

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Southeast Asia, Africa, Mid East

Specifications

Ceramic Raschig rings is the first development of a random packing. Simple shape, it is the same height and diameter of the ring. Raschig rings large size (100mm or more) means the general rules by filling the entire puzzle, 75mm Raschig rings under way to use more lumber loading. Heat resistance with excellent resistance to acid, the ability of various inorganic except HF acid, organic acids and organic solvents corrosion, can be used in a variety of high temperature applications, a wide range of applications can be used in chemical, metallurgical, gas, and environmental protection Industry, drying tower, absorption tower, cooling tower, scrubber, regeneration tower.

We plant the special specification according to user needs or special requirements, users can also be drawing production, and carefully designed for users. Easy ordering, fast delivery, consignment agent, to implement three users are welcome to visit.

Physical properties:

Specifications	Surface area m²/m³	Void	Accumulation of the number of	Weight accumulation	Packing factor m^-1
6	780	73	3110000	850	2030
25	190	78	66000	650	400
38	126	75	11500	600	305
50	93	81	10500	560	177
80	76	68	1950	660	243
