Cylinder Engraving Machine (FC-1325AY)

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

If you want to get more details,pls send mail to us to contact Sarah Zhao

Feathers of the machine:

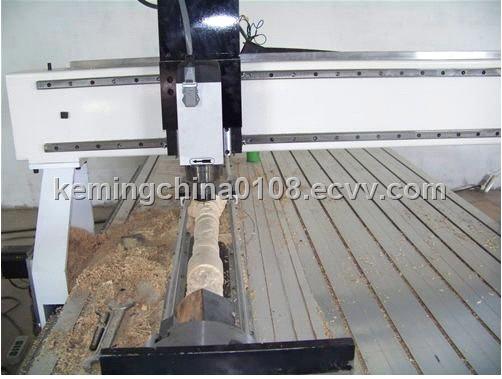

1There is a 200x2000mm rotary attachment on the 1300x2500mm working area table. It makes the machine can both process the panel material and cylinder.

2The lathe is founded by high-quality steel and upright, support plate, using aluminum cast process that ensures the high stability.

3Driving rail adopts original Taiwan imported 25mm square lead rail.

4Z axis adopts Taiwan TBI original coarse pitch precise rubbing screw rod, high precision transmission

5Imported high performance transducer, high frequency electronic anti-jamming system.

6.Y axis uses double-motor in-phase drive that ensure the machine equality and smoothly running.

7.Principle spindle adopts 4.5kw water cooling motor made in China, which is very powerful and with little nosie. It can work continuely without maintaining.

8.Intelligent protection for working table that can prevent misuse of software errors from damaging the surface. Its protecting of step beyond the boundary avoids crashing while design area beyond processing area.

9.equipp with standard America industrial aviation plugs links, soft metal cable sheath, avoids the cable damage situation from the press & bump effectively.

10.cable adopts YC numerical control machine shielding line, can reciprocate eight million times.

11.Advanced industrial controlling system is compatible to many dictate formats that can operate after accident or next day processing so it is very convenient.

Performance parameter

Outer dimension	190031001600mm
Work table	1440*3040mm
Working travel	1300*2500mm
Resolution	0.025mm
Power of the spindle	4.5kw
Work voltage	AC380V/50Hz
Motion speed	25m/min
Spindle rotary speed	24000rpm/min
Work mode	stepping
Cutter diameter	¢6 , ¢12.7
Engraving indicate	G code.uoo.mmg.plt
Rotary diameter	200*2000mm
