Shenzhen Auto Watchdog Electronics Co., Ltd.
China Manufacturer with main products: 3G Mobile DVR, Vehicle DVR, CCTV Camera, Car DVR |

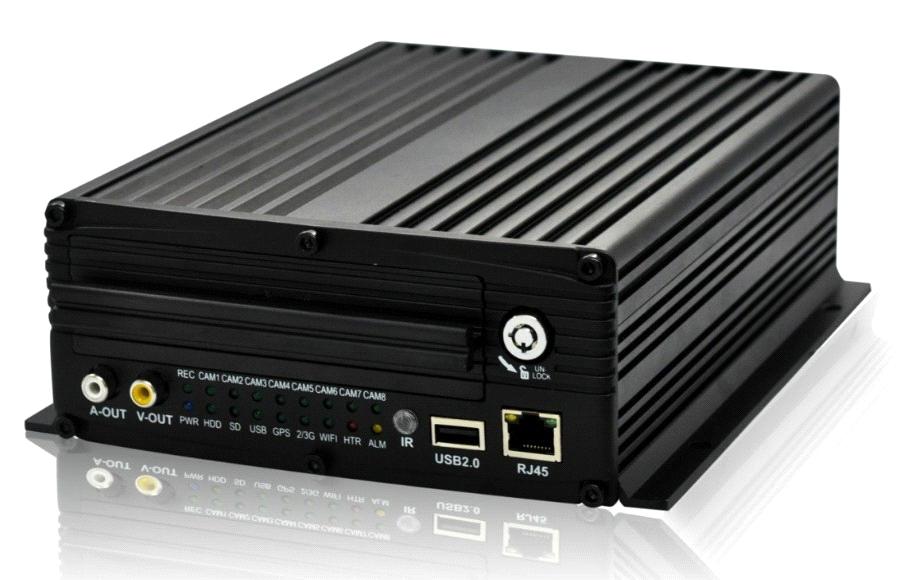

3G WIFI GPS HDD Mobile dvr
| Supply Ability: | 10,000 Set/Sets per Month |
|---|---|
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Specifications
Features
u H.264 video compression for high quality low storage needs and longer recording
u D1 definition (720*576, NTSC, 704*576, PAL), QCIF/CIF/HD1selectable.
u 4CH video and 4CH audio input, 1 video / audio output
u Ultra compact extruded aluminum housing, light and vibration resistant
u Embedded Linux operating system & On Screen Display menu
u 1* 1TB HDD/SSD, 1*32G SDHC card (Class 6/10),
u PC-based FAT 32 file system
u Frame Rate per channel: (PAL) 1-25fps ; (NTSC) 1-30FPS
u Live video & audio surveillance and tracking in Google Map
u Support WCDMA/EV-DO 3G Wireless Network
u Support for Wi-Fi for wireless transmission (optional)
u 6 alarm inputs with selectable pre-alarm and post-alarm recording
u Interior, 3-axis, inertia trigger of video-matched motion events (for accidents)
u Support for RFID, Police Detection Radar, Pan Tilt Zoom (PTZ), etc.
u CMS support for video management, Live Tracking large fleet management, etc.
u Easy to use PC-based MDVR Player for playback and AVI conversion
u Video event search software allows intelligent searching of video based on event
u 8-36V DC input adaptive, 12 DC output for camera
u Broad temperature operating range: -25℃ ~ +85℃( optional heater)
Specifications
|
Specification
|
|
|
Video
|
4CH input, 1 CH Output
|
|
Compression
|
H.264 main profile
|
|
Resolution
|
2D1& 2CIF / 4HD1 / 4CIF
|
|
Quality Settings
|
Adjustable, 5 levels
|
|
Recording Rate
|
1-30FPS (NTSC) per camera
1-25FPS(PAL) per camera
|
|
Storage Medium
|
2.5 inch SATA HDD/SSD, 1*32G SDHC
|
|
Storage
|
Up to 1000 GB
|
|
Record Mode
|
Timed Shut down/ Ignition/ Post Shutdown
|
|
Auto Overwrite
|
Selectable On/Off
|
|
Backup
|
Hard Disk, USB Drive
|
|
Network
|
RJ-45(TCP/IP)
WCDMA/EV-DO
802.11b/g/n
|
|
Display Mode
|
Quad in LCD monitor and MDVR Player
|
|
Playback Rate
|
2X, 4X, 8X, 16X, 32X
|
|
Search Function
|
Segment, Alarm, Date/Time
|
|
PTZ
|
2xRS-485
|
|
Battery Backup
|
Time & Program info (5 years)
|
|
Delay On/Off
|
Selectable 0 to 120 min
|
|
Smart Speed
|
Record the speed of the vehicle
|
|
G-sensor
|
Built-in G-sensor
|
|
Alarm
|
6 sensors input
|
|
Pre-alarm
|
5-25 seconds
|
|
GPS Ready
|
Google Map Tracking(optional)
|
|
Text Overlay
|
Time & Date, Speed
|
|
Power
|
DC 8-36V, DC12V 2A, 12W-30W
|
|
Temperature
|
-25℃ ~ +85℃
|
|
Dimension
|
220mmx166mmx70mm
|
|
Gross Weight
|
2.6 Kg
|
