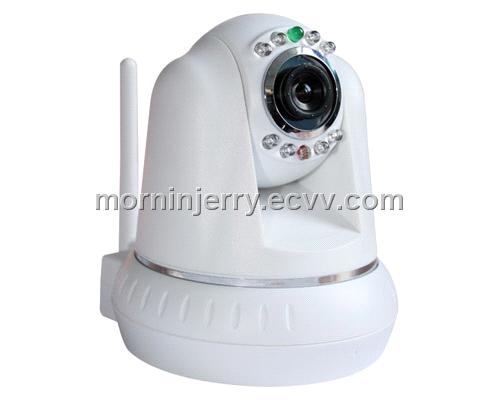

Samllest ip camera wifi mini ip camera
| FOB Price: | 56.76 - 68.76 USD/Piece |
|---|---|
| Supply Ability: | 13,000 Piece/Pieces per Month |
| Shipping: | shenzhen.China |
| Payment Terms: | L/C, T/T, D/A, D/P, Paypal, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | color box, 12pcs/carton |
Specifications
MJ545W(Goddess Model)
The MJ545W IP camera is widely used. Such as household, factory, shop, office etc. when you are travelling or in the office, you can see the situation of your parents and children at home. You know workshop production in the office from IP camera. You can remote operate the IP camera online, if there are unusual event happened, the IP camera gives an alarm automatically. Moreover, store the video in the SD card. It's easy to install and operate.
Function and Features
ü The video is compressed by MJPEG. There are VGA/QVGA/QQVGA three video resolutions optional. User can change some parameters according to their demands to satisfy his own visual prefer.
ü With built-in Microphone, it enables user to monitor the sound on the site. User can also connect this equipment to the speaker, and it supports two-way intercom function.
ü It was equipped with pan/tilt function, horizontally 340°and vertically 100°. Its outlook is smart, easy and convenient to install in many sites.
ü Infrared LED for night vision covers 5m area, to realize 24 hours monitoring.
ü Support IR and color filter change automatically, no any color difference.
ü It adopts the TCP/IP network protocols and has inner web server. Users can browse video through IE and other browsers. Data is transferred through one port; it is easy for user to do the network setting.
ü Support 802.11b/g /n protocol, can build up wireless monitoring.
ü Motion detection and alarm pin can be connected to external sensors to detect environmental situation.
ü Alarming record can be stored by email, FTP server. External alarm can be open when detecting unusuality. It also sends alarm info to the alarm server.
ü Support mobile phone to view
ü Support three level of user authority.
ü Supports UPNP, port forwarding automatically on the router.
ü Support upgrading online.
ü Manufacture attached a label at the bottom of each IP Camera, it include Device ID, DDNS. When IP Camera is connected to the internet, this URL can be used to visit the device.
ü Manufacture provides free software, support Multi-view, Long time recording, video replay etc.
Technical Parameters
|
Item
|
Sub Item
|
Description
|
|
Image Capture
|
Sensor
|
CMOS sensor
|
|
Total of pixel
|
300k
|
|
|
Minimum illumination
|
IR on, 0 Lux
|
|
|
Lens
|
f=4.0mm, F=2.0, Fixed Iris
|
|
|
IR_CUT
|
Support IR and color filter change automatically
|
|
|
Image stabilizer
|
support
|
|
|
Pan/Tilt
|
Pan Coverage
|
340°
|
|
Tilt Coverage
|
100°
|
|
|
Assistant
|
Lighting Control
|
8pcs 850nm Infrared LEDs, 5m distance
|
|
Lighting
|
Auto control
|
|
|
Video and Audio
|
Resolution
|
640*480(VGA)/320*240(QVGA)/160*120(QQVGA)
|
|
Compression
|
MJPEG
|
|
|
Frame rate
|
30fps
|
|
|
Bit rate
|
128kbps ~ 5Mbps
|
|
|
Image Rotation
|
Mirror /Up-side down
|
|
|
OSD
|
support
|
|
|
Audio Compression
|
ADPCM
|
|
|
Network
|
Basic Protocol
|
TCP/IP, UDP/IP, HTTP, SMTP, FTP, DHCP, DDNS, UPNP, NTP, PPPOE
|
|
Other Protocol
|
802.11b/g/n
|
|
|
Other Features
|
Video control
|
support
|
|
Dual way audio
|
support
|
|
|
Motion Detection
|
support
|
|
|
Triggered Actions
|
Email/FTP/external alarm/send message to alarm server
|
|
|
User Setting
|
Three levels
|
|
|
Date/ Time Setting
|
support
|
|
|
Upgrade
|
Upgrade from network
|
|
|
DDNS
|
A free DDNS provided by manufacturer
|
|
|
Hardware Interface
|
Ethernet
|
10Base-T/100base-TX
|
|
Alarm In
|
1 way
|
|
|
Alarm Out
|
1 way
|
|
|
Audio In
|
Internal mic
|
|
|
Audio Out
|
Audio Line-out interface x 1
|
|
|
Physical Index
|
Weight
|
298g
|
|
Main body
|
108mm(L)*109mm(W)*131mm(H)
|
|
|
Power
|
DC 5V
|
|
|
Power consumption
|
<6W
|
|
|
Operating temperature
|
-20℃~ 45℃
|
|
|
Operating temperature
|
10% ~ 80% non-condensing
|
|
|
Software(PC Side)
|
OS Supported
|
Microsoft Windows 98/2000/XP/Vista etc.
|
|
Browser
|
Internet Explorer6.0 and Above or Compatible Browser, Firefox, Safari etc.
|
|
|
Application Software
|
IPCMonitor.exe
|
