Fuzhou Xin Ruida Ship Electronic Co., Ltd.
China Manufacturer with main products: Marine Navigation Equipment, Marine Radar, Marine Compass, Marine Navigation |

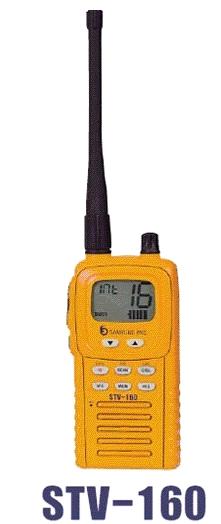

Samyung two-way radiotelephone STV-160
| FOB Price: | 330.00 - 370.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000 Piece/Pieces per Year |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Southeast Asia, Eastern Asia |
|---|---|
| Place of Origin: | South Korea |
| Packaging Details: | CARTON |
Specifications
Specifications
GENERAL
. Channels : All current USA, International and Canadian channels, plus 10 Weather
. Channel Spacing : 25KHz
. Supply Voltage : 7.2 Vdc 1350mAH
. Current Drain : Standby 40mA
- RX : 190mA st 0.5W audio output(1KHz) /
- TX : Less than 1A at 2W, 0.7A at 1W, and 0.6A at 0.5W
. Operating Temperature Range : -20℃ to +60℃
. Battery Life : 8 Hours (TX :10%, Standby : 90%)
. Dimensions : 125mm(H)X65.1mm(W)X36mm(D) / 4.92”(H)X2.55”(W)X1.41”(D)
. Weight : 420g
TRANSMITTER
. Frequency Range : 156.025 to 157.425 MHz
. RF Output Power : Selectable 2W, 1W, 0.5W into 50? at 7.2Vdc
. Spurious Emissions & Harmonic : -65dB at 2W, -55dB at 1W and 0.5W
. AF Distortion : Less than 3% at 1KHz for±3KHz Deviation
. Max Deviation : ±5KHz
. Frequency Satability : ±5ppm
. FM Noise : More than -40dB below audio
RECEIVER
. Frequency Range : 156.025 to 163.275 MHz
. Circuit Type : Dual conversion superheterodyne
. Sensitivity : 0.2? at 12dB SINAD
. Adjacent Channel Selectivity : More than 70dB
. Intermodulation Response : More than 65dB
. Spurious Response Rejection : More than 70dB
. Audio Output power : 0.5W at 10% distortion into 8 ? load
Components
. Two-way VHF : STV-160
. Flexible Antenna : ANT-200
. Lithium Battery (For Emergency Use) : SPL-80
. Nickel Metal Hydride Battery(Rechargeable) : SPN-72
. Standard Charger Kit with AC Adapter : SC-62/63
. Belt Clip : SA-64
. Installation Manual
