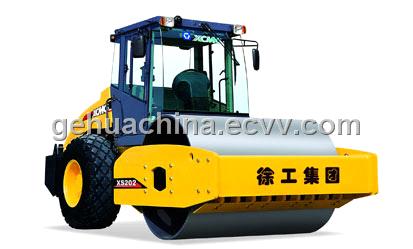

XS202 Hydraulic single drum vibratory compactor

Inquiry Now

Related products from verified members

Used XCMG YZ20JC Compactor

Price:16,000.00-20,000.00 USD/Piece

Min. Order:1 Piece
Electric Plate Compactor

Price:

Min. Order:5 Pieces
Flat Vibration Rammer / Plate Compactor

Price:

Min. Order:
Construction Zone Plate Compactor, Vibratory As...

Price:892.00-950.00 USD/Piece

Min. Order:5 Pieces
plate compactor RWHB24

Price:

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

Comfortable driving
•ROPS driving cab is equipped with an air conditioner, radio and suspended chair. It has a bigger space and broad view inside.
Unique structure
•Unique cylindrical drum structure features high rigidity and intensity. Short cylindrical bearing with high limited rotation speed provides high load - carrying capacity. The symmetrical arrangement of the right and left vibration chambers avoids the polarization of the vibratory drums.
Easy operation
•According to the ergonomics theory, all meters, indicators and buttons are centered on the operation panel. The throttle handle and FWD/REV handle are put on the right side to improve the sense of comfort.
•The failure diagnosis screen with alarms can avoid any unnecessary downtime.
•The simple and easy lubrication mode ensures an extremely low failure rate of the lubricating system.
•XCMG is the first manufacturer to adopt the central engine for effortless maintenance.
Leading compacting performance
•The unique hydraulic driving system design and heavy vibratory wheel weight make the XCMG’s roller highly advanced in compaction ability.
•Heavy loaded drive axle and nonskid differential mechanism can furthest transfer the output power as well as the tractive force of engines.
Outstanding configuration
•The key components are provided by international suppliers (hydraulic pump, motor, drive axle, vibratory bearing and rotating alarm lamp), it also has several engine models for selection to meet different working conditions and customer’s needs.
Multiple functions
•The split convex block drum (below 16t) and integral convex block drum (18-20t) can be selected according to the customer’s requirement.
Easy maintenance
•The aural and visual alarm device can timely provide the maintenance message to avoid the machine faults and to shorten the down time.
•The self-opening engine shield makes the engine and hydraulic pump easy to access to.

Type	Unit	XS202
Operating weight	kg	20000
Load on front drum	kg	13500
Load on rear wheels	kg	6500
Drum width	mm	2130
Static linear load	N/cm	621
Vibration frequency(Low/High)	Hz	28/33
Nominal amplitude(High/Low)	mm	1.86/0.93
Excitation force(High/Low)	KN	370/255
Travel speed	km/h	0~10
Steering angle	°	±33
Swing angle	°	±10
Theoretical gradeability	%	50
Min. turning radius	mm	6500
Engine model		Cummins B5.9
Engine power	kw	132
Rated engine speed	r/min	2200
Engine oil consumption	g/kW.h	232
Hydraulic oil tank capacity	L	240
Fuel tank capacity	L	240
