SMT adhesive for chip mounting machines

Inquiry Now

Related products from verified members

Flocculent CMC

Price:800.00-1,000.00 USD/Metric Ton

Min. Order:1 Metric Ton

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

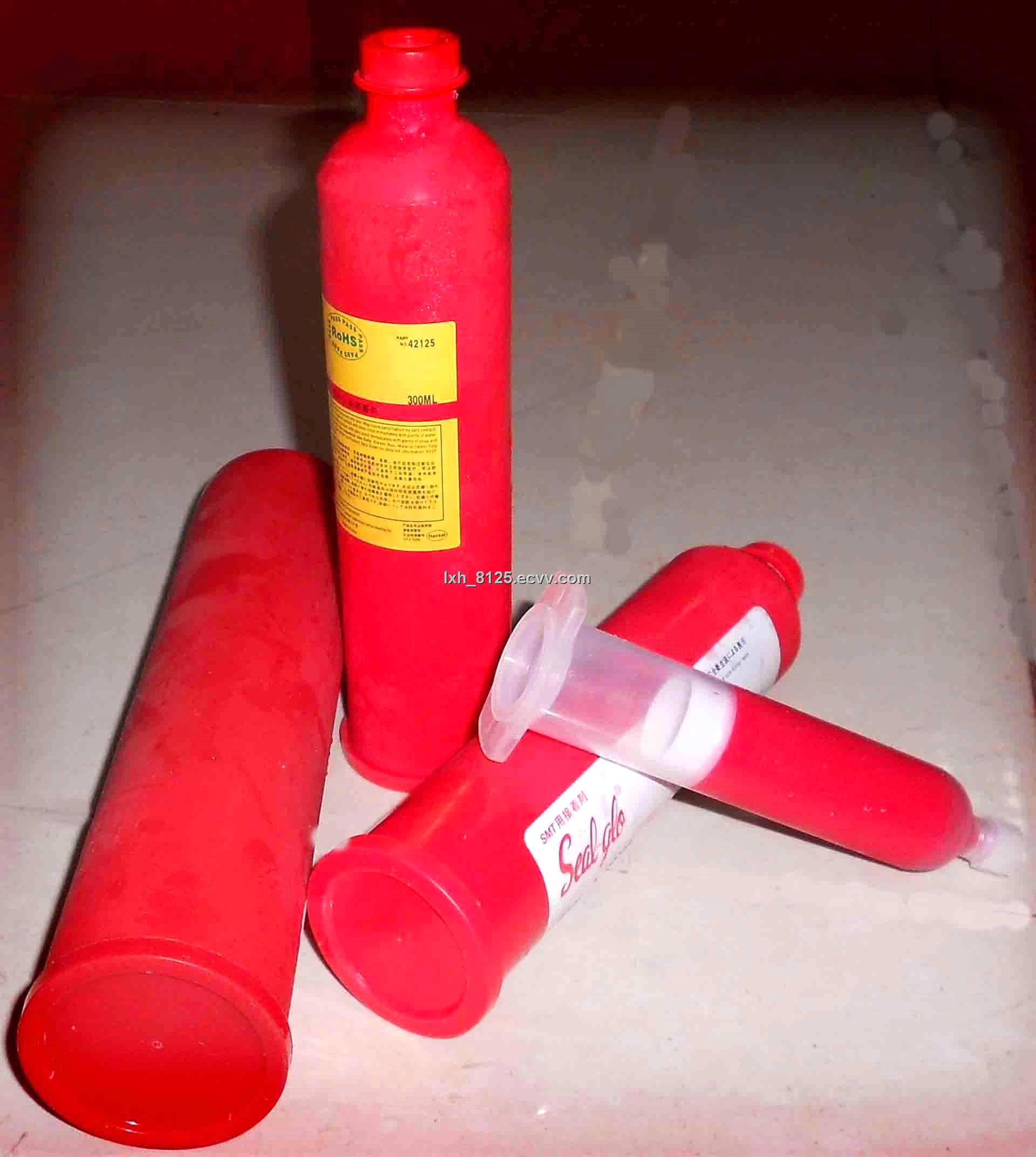

Packaging Details:	200gr,360gr,10cc,20cc,30ccsyringes,1000g is standard bottled

Specifications

We developed “SND series ”adhesive for chip mounting machines or SMD.They are one-part thermo-setting epoxy adhesive with the property of preservation stability, and are of 1 to 2 minute short time or high speed curability required for 120 to 150℃ heat-give SMD packaging.We are ready, in addition, to offer the adhesive of various grades with excellent micro-printability or with suitability for high-speed dispensers.

Packaging:200gr, 360gr,10cc,20cc,30ccsyringes,1000g is standard bottled

		SND5611	SND5609
Composition		Epoxy resin
Appearance		Paste/ Red-colored/ Yellow-colored
Specific gravity		1.28	1.38
Viscocity at 25℃,5rpm		300000cps	390000cps
Adhesive strength	2125C	44N(4.5kgf)	38N(3.9kgf)
	Mini-mold tr	45N (4.6kgf)	38N(3.9kgf)
	SOP-IC 16P	92N(9.4kgf)	92N(9.4kgf)
Electric property
Volume resistance		2.6×10¹⁶Ω•cm	1.8×10¹⁷Ω•cm
Insulation resistance
Initial value		1.0×10¹⁴Ω	3.4×10¹⁴Ω
After treating		1.2×10¹²Ω	2.1×10²Ω
Dielectric constant		3.62/1MHz	3.8(100KHz)
Dielectric loss tangent		0.013/1MHz	0.027/(100KHz)
Preservation condition Keep in refrigeration below 2℃~10℃
