Specifications

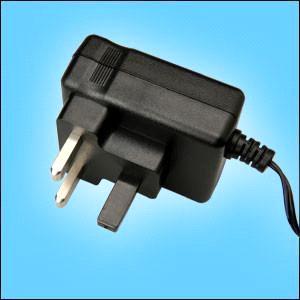

12W adapters
Model : GFP121K-XXXXXX-1
Description
- Market: England
- Wall Mount UK Type
- Meet CEC Regulations
- ROHS Compliance
- No Load Power Consumption Less than 0.3W
General Specifications
| Maximum output power: | 12W |
| Input voltage: | 90~264Vac |
| Input Frequency: | 47Hz~63Hz |
| Input Current: | 0.36A |
| Efficiency: | Meet CEC |
| Ripple noise (max): | +1% voltage Max |
| Line Regulation: | ±1% |
| Load Regulation: | ±5% |
| Hold-Up Time: | 16mS |
| Over Voltage Protection: | 120% |
| Operating Temperature: | 0~40°C |
| Storage Temperature: | -20~85°C |
| Storage Humidity: | 5%RH~90%RH |
| Withstand voltage: | AC 3KV |
| Burn-In Test: | 100% Full Load |
| MTBF: | 50000Hours |
| Weight: | ABOUT 120g |
Dimensions
LxWxH: 60.4x49.4x26.5 (mm)
| Model | INPUT | OUTPUT |
| GFP121K-030200-1 | 3.0V-3.9V 0.01-2.0A | |
| GFP121K-040200-1 | 4.0V-4.9V 0.01-2.0A | |
| GFP121K-050200-1 | 5.0V-5.9V 0.01-2.0A | |
| GFP121K-060200-1 | 6V 0.01-2.0A | |
| GFP121K-061195-1 | 6.1V-6.2V 0.01-1.95 | |
| GFP121K-063190-1 | 6.3V 0.01-1.9A | |
| GFP121K-064185-1 | 6.4V-6.5V 0.01-1.85A | |
| GFP121K-066180-1 | 6.6V 0.01-1.8A | |
| GFP121K-067175-1 | 6.7V-6.8V 0.01-1.75A | |
| GFP121K-069170-1 | 6.9V 0.01-1.7A | |
| GFP121K-070160-1 | 7.0V-7.5V 0.01-1.6A | |
| GFP121K-090130-1 | 9V 0.01-1.3A | |
| GFP121K-091125-1 | 9.1V-9.4 0.01-1.25A | |
| GFP121K-095120-1 | 9.5V-9.9V 0.01-1.20A | |
| GFP121K-100120-1 | 90-264VAC | 10V 0.01-1.2A |
| GFP121K-101110-1 | (47-63Hz) | 10.1V-10.9V 0.01-1.1A |
| GFP121K-110110-1 | 11.1V-11.9V 0.01-1.1A | |
| GFP121K-120100-1 | 12V 0.01-1.0A | |
| GFP121K-121095-1 | 12.1V-12.5 0.01-0.95A | |
| GFP121K-126090-1 | 12.6-12.9V 0.01-0.9A | |
| GFP121K-130090-1 | 13V-13.3V 0.01-0.9A | |
| GFP121K-134085-1 | 13.4V-13.9V 0.01-0.85A | |
| GFP121K-140085-1 | 14V-14.9V 0.01-0.85A | |
| GFP121K-150080-1 | 15V 0.01-0.8A | |
| GFP121K-151075-1 | 15.1V-15.9V 0.01-0.75A | |
| GFP121K-160075-1 | 16V 0.01-0.75A | |
| GFP121K-161070-1 | 16.1V-16.9V 0.01-0.70A | |
| GFP121K-180060-1 | 18V-18.9V 0.01-0.60A | |
| GFP121K-190060-1 | 19V-19.9V 0.01-0.60A | |
| GFP121K-200055-1 | 20V-20.9V 0.01-0.55A | |
| GFP121K-210050-1 | 21V-21.9V 0.01-0.5A | |
| GFP121K-220050-1 | 22V-22.9V 0.01-0.5A | |
| GFP121K-230050-1 | 23V-23.9V 0.01-0.5A | |
| GFP121K-240050-1 | 24V 0.01-0.5A | |
| GFP121K-241045-1 | 24.1V-24.9V 0.01-0.45A |
Safety Approval
CE CB
