Ruian Jiangnan Machinery Co.,Ltd.
China Manufacturer with main products: coating machine, laminating machine, coating laminating machine, flexo printing machine, die cutting machine, thermoforming machine, plastic... |

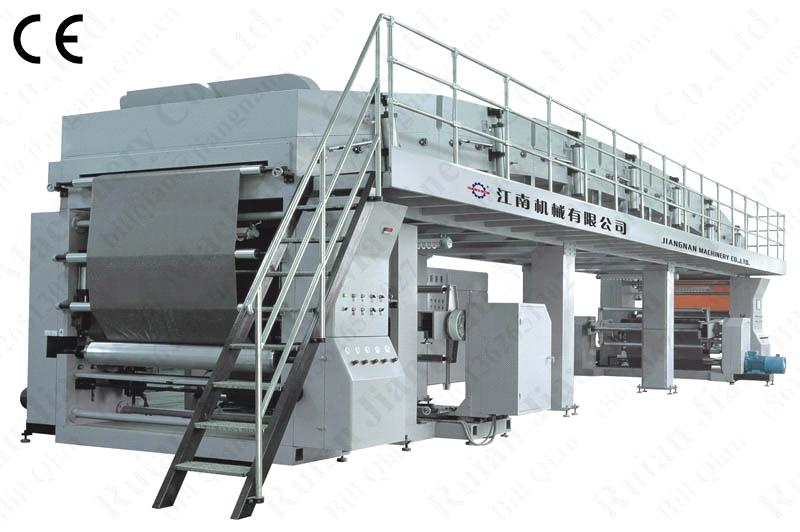

TB Series Laminating Machine
| FOB Price: | 55,000.00 - 150,000.00 USD/Set |
|---|---|
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | wooden case/pallet |
Specifications
Features:
1.This machine adopts frame structure type and length of machine can be determined by the user.
2.AC frequency stepless speed regulation, pre-traction, coating, laminating traction, rewinding are synchronously controlled.
3.PLC control with man-machine interface can achieve many advantages such as preciseness, sensitivity, easy-operation, anti-jamming.
4.This machine adopts anilox roll measuring coating type and auto glue homogenized function; the anilox roll can be processed by laser carving, electronic carving, machine extruding, ect.
5.Movable double shafts, pneumatic back pressure scraper and three- dimension adjustment can efficiently control the directions and pressure of scraper.
6.This machine adopts separately constant temperature drying system and various kinds of heating types, such as hot air cycling heating, IR heating, ect; automatically controlling temperature in each temperature zone, adjustable cycling in-out air system.
7.Inner leading roller of oven adopts double glide assembling type and drives with main machine synchronously; oven adopts door-opening on two sides or air cylinder pushing opening, operation platforms and defence grilles on both sides.
8.Auto counting, auto rising and decreasing speed, auto tape-broken inspection, auto error alarm, pneumatic components auto on-off.
9.Rewinding and unwinding adopt double working positions turning type or single working position hydraulic pressing lift-drop type, materials loading & unloading by air shafts.
Main Technical Parameters:
|
soft roll materials such as plastic film, aluminum foil, paper, laminating film, etc. |
|
800~1600mm
|
|
150m/min
|
|
10~120m/min (according to the material) |
|
10~20m
|
|
50~200°C |
|
electric heating, oil heating, steam heating, stove, etc
|
|
800mm 1000mm 1200mm
|
