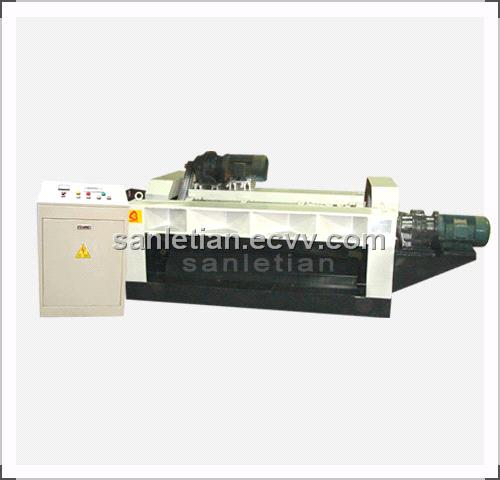

SLW1400XPC Conversion Wedge-free Rotation Shaver

Supply Ability:	100 Set/Sets per Week
Shipping:	by sea or others
Payment Terms:	L/C, T/T, Western Union

Inquiry Now

Related products from verified members

jcb side cutters

Price:1.20-1.45 USD/Kilogram

Min. Order:2000 Kilogram
Hand Notcher

Price:

Min. Order:
Inner Tube Press

Price:

Min. Order:
Intelligent Four Side Sealing Machine / Catsup ...

Price:288,000.00-320,000.00 RMB/Set

Min. Order:1 Set
Vegetable&fruit refrigerated cabinet

Price:

Min. Order:1 Unit
Testing Cast Iron Surface Plate

Price:100.00-1000.00 USD/Piece

Min. Order:1 Piece

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	Nude or others

Specifications

Explanation

1.Manual grinding of edge

2.High frequency quenching of roller

3.U.S.made control system

4.Advanced touch screen or text display

Cycloid pin decelerator,low noise,super transmission rate

lower slideway,ensuring even veneer

Three ground shafts reinforcement,stable edge feeding,3 times longer durability than that of coattail type

MODEL : SLW1400    SLW2300 SLW2700

       SLW series digital frequency conversion wedge free rotation shaver is turned by French curve cam,adopting overall frame structure reinforced with lower sideway, whereupon stable feeding of edge is ensured .Different from timing motor and hydraulic feeding ayatem ,speed variation is realized with pure mechanical mode ,and thus avoiding instable shaved thickness caused by impulaive force of log which is out of round .
        Control System 1:   Equiped with US Emerson transducer ,Taiwan TaiDa PLC programmer ,Human Vs Machine interface ,thinkness display , which ensures operation stability and outputting even and level veneer ,smooth and level .the error is limited to±0.05mm or so ,operation with facility .
        Control System 2:   Taiwan TaiDa transducer is applied ,also adopted including
Taiwan TaiDa PLC programmer,touch screen ,thickness display , which ensures operation stability and outputting even and level veneer ,smooth and level .the error is limited to±0.05mm or so ,operation with facility .
        Main properties :
       1.Roller coupling structure:
          Method 1:to be coupled by spline ,small jumping and high precision .
          Method 2:with twin bearings with air tight rings to avoid water and ensure bearing lift .
        2.Edge is sharpened manually , fine straight and level .
        3.The ridge is equipped with regulation screw ,which ensure instant regulation of edge after sharpening .
        4.the shaved veneer is level smooth and even.

SLW series digital frequency conversion wedge free shaver
Type	Dia	Processing length	Final dia	Speed	Depth	Weight	Roller dia	Power	Outer measure	Knife fixation
SLW1400	260 (mm) 300 (mm)	1300 (mm)	30(mm)	34(m/min)	0.4-5.0 (mm)	3500 (kg)	99(mm)	19.5 (kw)	3000×1800×1100mm	Obverse fixation
SLW2300	200(mm) 260 (mm) 300 (mm)	2100 (mm)	30(mm)	34(m/min)	0.4-3.0 (mm)	4000 (kg)	99(mm)	24.5 (kw)	4000×1900×1100mm	Obverse fixation
SLW2700	260 (mm) 300 (mm)	2600 (mm)	30(mm)	34(m/min)	0.4-3.0 (mm)	5000 (kg)	99(mm)	24.5 (kw)	4500×1900×1100mm	Obverse fixation
Material	Straight log or remained log core from wedge shaver
