Flying Tracks Company
China Manufacturer with main products: Rubber Tracks, ATV Tracks, Utv Tracks, Suv Tracks |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | wooden case |
Specifications

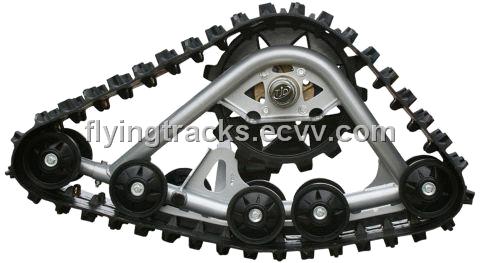

Easy steering Extra Heavy Duty up to 6000kg
SPECIFICATION
Exclusive Anti-toque System-----------------------Antiover turn system
Freame Construction-------------------------------- Steel
Assembly Weight--------------------------------------150kg
Spec(L,W,H)--------------------------------------1100mmX400mmX800mm
Type of Vehicel---------------------------------------Heavy Duty 4X4Vehicles,Off road, Pick up and etc.
Recommended Max.Gross Wt.--------------------6000kgs
Internal Suspension--------------------------Ft.-Concentric Pivot W/Independent Offset Rocker Arm(for easy steering)
Track Width------------------------------------------ 400mm.
Ground Clearance------------------------------------------21 inches/535mm
Track Style-------------------------------------------All-Terrain Self-Cleaning
Track material----------------------------------------Rubber with Internal Composite Rods/Cord
Recommended Operating Temperature-----------(-40to +55centi-degree)
Ground Contact Length:
(Hard Surface)-----------------------------------41 in.min.(1,040 mm min.)
(Soft Surface)------------------------------------59 in.max.(1,500 mm max.)
Ground Contact Surface Area----------------------2,624 sq.in.min.(16,900 sq.cm min.)3,776 sq.in.max.(24,360 sq.cm max.)
Ground Pressure-------------------------------------1.4 to 2.8 psi(.0.1 to .0.2 Nmm2)
Driving Wheeland Roller material-------------------------------------UHMW-PE
Paint----------------------------------------------------Yellow-standard . Other colour-"optional"
PERFORMANCE
Recommended Max. speed----------------------60km/h
Terrain----------------------------------------------All Terrain Including Hard Surface
Maximum Distance Off Road------------------Indefinite
Side Slope Capacity------------------------------68%
Warranty:12months
