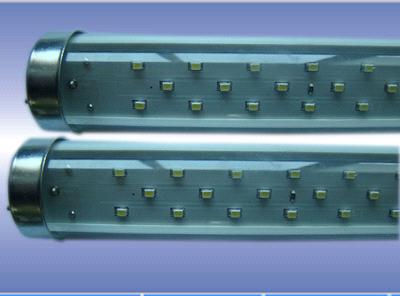

SL-SMD-T8-1500-25W

Specifications

Specification:<ul>
Materials: aluminum alloy cooling fin and PC cover
Power: 22W
Unit size: 1,500 x 26mm
LED quantity: 384 pieces
Luminous efficiency: >95lm/W
Input voltage: 85 to 277V AC
Output voltage: 57V, 0.144A
Luminous flux: 2,376lm
Working frequency: 50 to 60Hz
Ambient temperature: -20 to 50 degrees
Ambient humidity: more than 65%
Color rendering index: 70 to 85Ra
Power factor: &#8805;0.95
Equal to conventional fluorescent: 60W+</ul>
Features:<ul>
Good heat dissipation: using high thermal conductivity aluminum alloy as the main heat dissipation, good heat dissipation performance
Easy replacement: replace the traditional tube light directly
LED sources: applied with the highest-level LED, low brightness, attenuation and lifespan is over 50,000 hours
Optional multi-input voltage: wide-voltage design AC input voltage, adapt to different voltage range
Environmental protection: without any harmful radiation spectrums such as UV or infrared ray included</ul>
Attention:<ul>
Please use and install according to the instructions
Do not hit or press with heavy substance
Please handle and transport gently
Do not twist the light when power is on
The warm light tube is normal when the power is on
Do not touch the lamp when power is on</ul>
Installation:<ul>
Standard installation: connect directly to AC power, this is the most saving energy mode
Replacing installation: if there is a starter on the old fluorescent light fixture, remove the starter
Remove electronic ballast
If there is no starter on the fluorescent light fixture, remove the electronic ballast</ul>
