Zhejiang Star Cable Co., Ltd.
China Manufacturer with main products: Cable, Coaxial Cable, RG59, RG6, Bulk Cable, RG11, RG58, CCTV Cable |

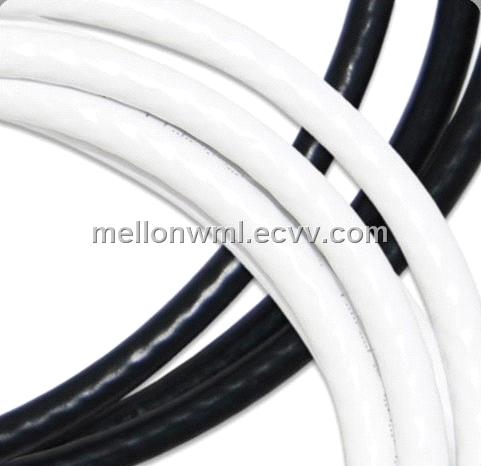

75 OHM RG59 High Quality COAXIAL CABLE
| Supply Ability: | 8,000 Kilometer per Month |
|---|---|
| Shipping: | 20 DAYS |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | AS YOU REQUIRE |
Specifications
Rg59
Braiding coverages%...53 or 67
...Inches mm
Conductor (18awg)...0.023 0.81
Dielectric foam PE...0.146 3.66
Foil apa bonded tape...0.152 3.86
Braiding (al or cu)...0.177 4.50
PVC jacket...0.241 6.12
Braiding coverages%...53 or 67
...Inches mm
Conductor (18awg)...0.023 0.81
Dielectric foam PE...0.146 3.66
Foil apa bonded tape...0.152 3.86
Braiding (al or cu)...0.177 4.50
PVC jacket...0.241 6.12
| ATTENUATION @ 68 ºF (20ºC ) | |||
| FREQUENCY | Maximum (dB/100m) | Maximum (dB/100ft) | |
| 100m | 100ft | ||
| 5MHz | 1.9 | 0.58 | |
| 83MHz | 6.4 | 1.95 | |
| 211MHz | 10.0 | 3.05 | |
| 250MHz | 10.82 | 3.30 | |
| 300MHz | 11.64 | 3.55 | |
| 400MHz | 13.61 | 4.15 | |
| 600MHz | 16.73 | 5.10 | |
| 865MHz | 20.01 | 6.10 | |
| 1000MHz | 21.49 | 6.55 | |
| IMPEDANCE | Ohm | 75 ± 3 | |
| CAPACITANCE | pF/m | 52 ± 2 | |
| VELOCITY RATIO | % | 82% | |
| RETURN LOSS AT | VHF5-300MHz | 22dB | |
| UHF300-960MHz | 20dB | ||
| SCREENING EFFICIENCY | VHF5-50MHz | 85dB | |
| MORE THAN UHF200MHz | 90dB | ||
