BATTERY MONITORING SYSTEM To Monitor Voltage, Current, Battery Temperature, Battery Resistance & PC Software Managment
| Supply Ability: | 1,000 Set(s) per Month |
|---|---|
| Shipping: | BY Air |
| Payment Terms: | L/C, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shaanxi in China |
| Packaging Details: | Standard Boxes |
Quick Details
- Nominal Voltage: 24V/48V/110V/220V/380V/480V/600V
- Battery Type: 1.2v/2v/6v/12v
- Size: 10x5x3cm
- Brand Name: FORESIGHT
- Color: Black and Blue
- Nominal Capacity: 1-6000Ah
- Model Number: FST-TA Cellcheck
- Measurement Range & Accuracy: String voltage
- String voltage: 20-600V,0.5%+0.2V)
- Cell voltage: 1.2-2.5V 9-15V
- Internal resistance: 100-65535ohm
- Battery temperature: 5C-50C, 1.5
- String current: 0-300A
- serial port: meet MODBUS protocol
- Insulation: 2000VAC
Specifications
No worry about your power system
L for power system, it's very important that battery system run smoothly. Only taking good regular maintenance is not enough to ensure battery system normal. for not critical battery system, typical regular maintenance is enough, but that only indicate the state of battery at a certain time.
L in the application of critical battery system, any accident must be prevented to happen.
L that requires battery in good state all time.
L the only way to ensure battery system in integrated is to install battery monitoring system.
Why to choose H3G battery monitoring system?
L Ensure battery to provide enough energy;
L Early find degradation of batteries;
L Be aware of current state of batteries, especially capability degradation.
L Avoid change battery blindly, reduce cost;
L Improve safety of operation;
L Anyone can see system from anywhere on the LAN by simply using a standard
L Web browser, reduce maintenance cost.
Key Features
L the system is modular and easy to configure for different power system
L on-line measurement of battery impedance, voltage and current
L 24*7 automatic cell voltage test and alarm
L Intelligent data analysis
L Remote monitoring
Key Functions
L Monitoring Items
- Cell Voltage
- Cell Internal Resistance
- String Voltage
- String Charge & Discharge Current
- String Ambient Temperature
L Alarm Items
- String Charge Voltage High/Low
- Discharge Current High (Optional)
- Charge Current High (Optional)
- String over-discharge
- Cell Charge Voltage High/Low
- Cell IR over Limit
- Cell over Discharge
- Cell Short Circuit
- Cell Open Circuit
Technical Specifications
L Measurement range/tolerance
Nominal cell/module voltage: 1-12 VDC.
Cell voltage: 0 to 16V, 0.2% of reading 1 mV.
Cell resistance: 0 to 32,000?, 3% of reading 1?.
Internal resistance: 0 to 5 m?, 5% of reading 5?.
Temperature:0 C to 80 C (32 F to 176 F) 1 C.

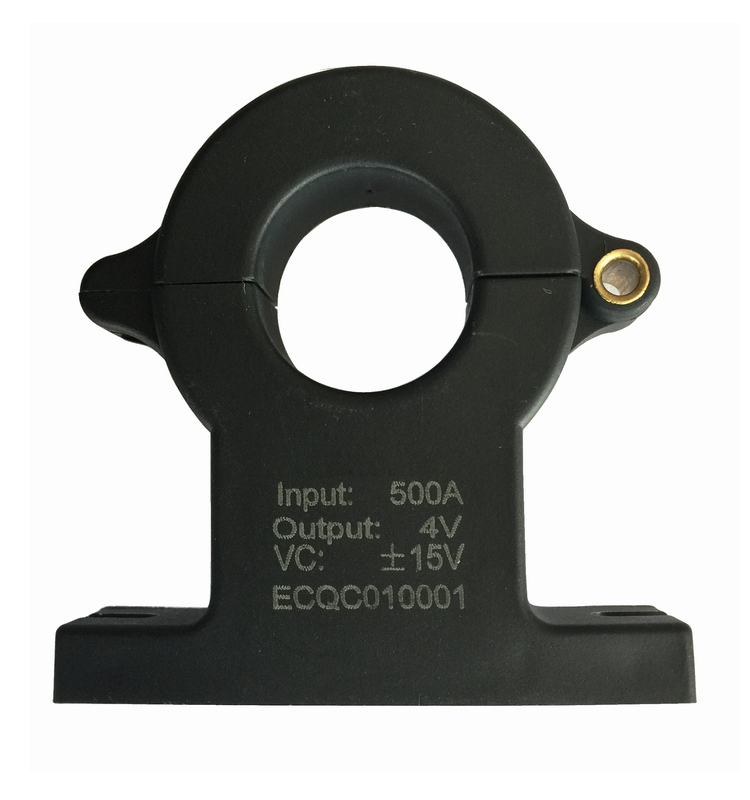

Discharge current: 0 to 4,000A 0.1% of reading 1A (shunt), 5% of full scale
(CT).
L Communication
RS485
ModBus.
L Working condition
Operating temperature: 0 C to 80 C (32 F to 176 F)
L Weight
H3G-S module: 4.0KG.
L Dimensions

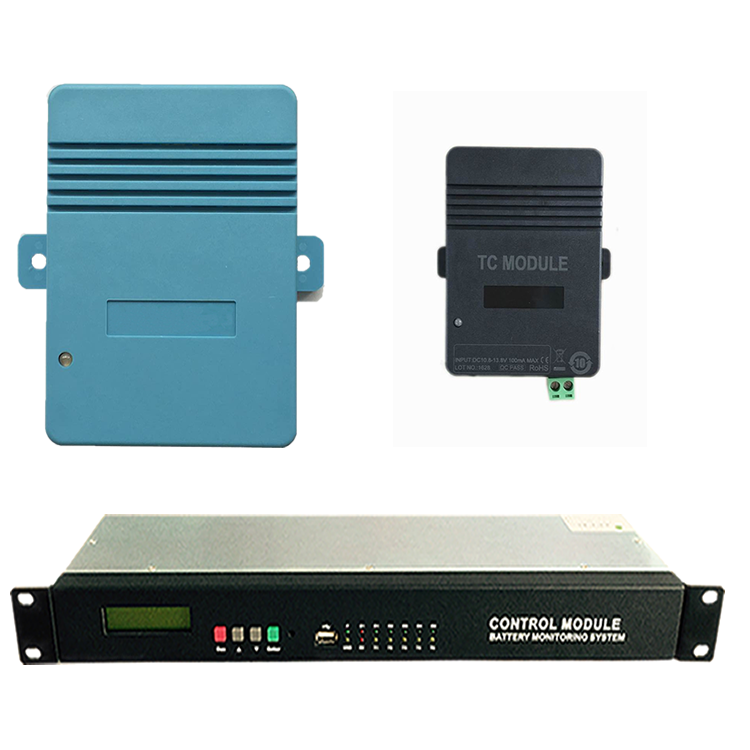

Control module: 482mm (W)*89mm (H)*165mm (D).
