Shenzhen M-Tech Co., Ltd.
China Manufacturer with main products: Membrane Keypad, Membrane Keyboard, Membrane Switch Keypad, Membrane Switch Panel |

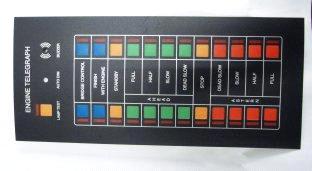

Gloss Semi-gloss or Matte Non-tactile Membrane Overlays
| Payment Terms: | L/C |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Place of Origin: | Beijing in China |
|---|
Specifications
We can manufacture various of membrane overlay, which is made of PET, with high quality, the color due to Pantone and RAL syste
Specification:
1 Overlay Materials: The most commonly used base materials are polyester(PET) and polycarbonate(PC).
2 Rear Adhesive: 3M 467MP, 3M 468MP, etc.
3 Matching color: Pantone and RAL color matching system.
4 Gloss, semi-gloss or matte
5 Non-tactile, poly dome or metal dome
6 Standard Tolerances: +/-.010 inch (+/-0.25mm).
Performance
Electrical
Contact Bounce: Less than 5 Milliseconds typical.
Conductors: Printed silver conductive inks or carbon blend.
RFI and ESD Shielding: Available in most configurations.
Mechanical
Life Expectancy: 1, 000, 000 actuations per switch position
Actuation Force: 6~24 ounces (170~680g), Range depending on customer specification.
Switch Travel: .005" to .030" (0.1~0.8mm) typical.
Overall Thickness: .020" to .050" (0.5~1.3mm) typical.
Environmental
Storage Temperature: -40°C (-40°F) to +70°C (158°F).
Storage Altitude: Sea level to 35, 000 feet.
Operating Temperature and Altitude: -30°C (-30°F) to +75°C (170°F). Can be designed to operate in most environments.
Humidity: No delamination after 24 hours at 80°C and 90%RH.
Service Guarantee
-
Free Service Charge
ECVV doesn't charge any service fee to Buyers for buying this product.
-
ECVV Supply
ECVV is responsible for supply, and provides product quality inspection, fund supervision and supply chain services.
-
Product Quality Commitment
ECVV China Sourcing Agent will assess the reputation and supply ability of the factory and conduct field trips to select the high-quality Chinese factories for buyers.
-
Deposit Service Commitments
In order to improve the quality of service, ECVV will charge for a 100CNY deposit for the agent purchasing order, and the deposit will be part of subsequent purchasing costs.
After paying a deposit, if the purchasing order is not completed because of unsatisfied ECVV services, ECVV will refund your deposit.
Membrane Switch Overlay from this supplier
FOB Price: 2.00-5.00 USD/Piece
Min Order: 100 Pieces
FOB Price: 15.00-20.00 USD/Piece
Min Order: 50 Pieces
More products from other suppliers
Min Order: 100 Pieces
