Specifications

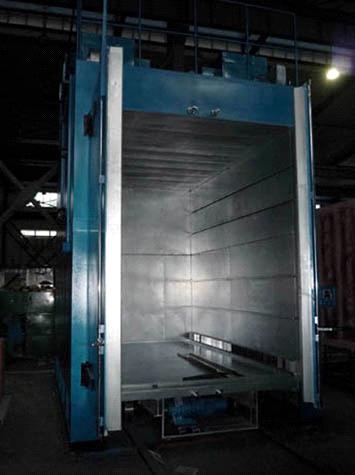

SLJ series high-safety and energy efficient dipping paint drying oven (also known as electric motor
dipping paint oven , electric motor dipping paint drying oven or far infrared rotation oven) is
widely used in the drying process of impregnated products, such as electric motor, stator,
transformer, coil, electrical products. Also, it can be used in the drying process of paint
coating and the drying, curing, heat treatment, disinfection and heat preservation of normal
articles. The oven is equipped with waste gas outlet which is convenient for exhausting of
gas. It adopts low surface loading sealed electric heater. On the top, there is an explosion
venting to protect explosion effectively. The oven is adequate for drying and curing which
needs strict temperature requirement under the condition of large ventilation rate.
dipping paint oven , electric motor dipping paint drying oven or far infrared rotation oven) is
widely used in the drying process of impregnated products, such as electric motor, stator,
transformer, coil, electrical products. Also, it can be used in the drying process of paint
coating and the drying, curing, heat treatment, disinfection and heat preservation of normal
articles. The oven is equipped with waste gas outlet which is convenient for exhausting of
gas. It adopts low surface loading sealed electric heater. On the top, there is an explosion
venting to protect explosion effectively. The oven is adequate for drying and curing which
needs strict temperature requirement under the condition of large ventilation rate.
Features:
1Adopts our unique design of heat exchanger which will make high thermal efficiency, and
low temperature of the emissions .
2) Sensitive and reliable thermostatic control system and over temperature alarm system.
3) Over pressure protection system. When the wind pressure (the gas exhausting) is
abnormal, it will give out sound and light alarms and cut off heating power to ensure the
safety of equipment.
4) Complete circulating ventilation and unique heated-air circulation system ensure the temperature rises evenly. Large ventilation rate during the
whole course and unique pre-posed ventilation function guarantee that combustible gas concentration in the oven is
always within safety limits.
5) Because of large and efficient ventilation, the concentration of steam of dissolvent in the
working chamber is always low, which accelerates the volatilization of dissolvent in the
insulating paint of dried products. Thus, drying duration is shortened. It not only raises
efficiency but also saves energy.
6) Heating element adopts electric heating tube with low surface temperature, which
eliminates the most dangerous factor that triggers explosion.
7) There is a pressure outlet in large area on the top of the oven, which cuts down losses
as possible in case of accident.
8) Insulation resistance tester can measure at any time.
9) Trolley is for loading work pieces. Manual type and power-driven type are optional.
