Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

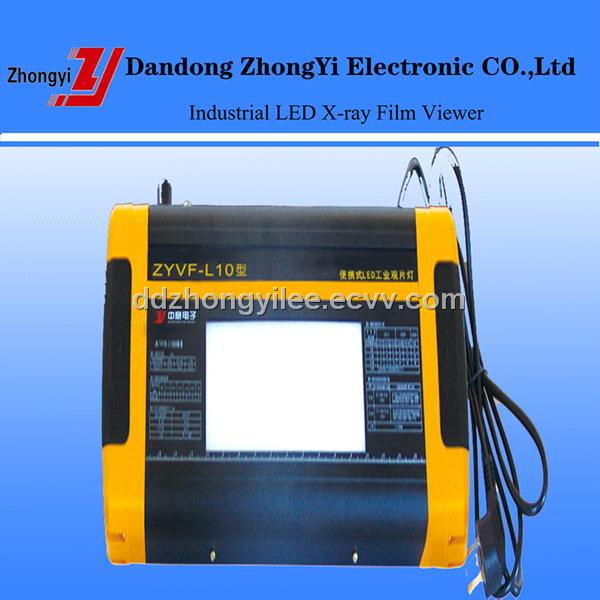

ZYVF-L10LED film viewer is a new series product that followed by the new standard of <> and GB/T 19802-2005<< Industrial radiography published film view pieces lamp>>.

The light source adopts high power LED light source surface to make it keep a real high degree of uniformity in high lighten. Theoretical work life is more than 50,000 hours; it is the Update products from the existing industrial radiographic film.

Besides, it has Beautiful shape, reasonable structure, stable light, reliable and easy to carry, brightness can be arbitrary regulate. it ‘s the ideal X rays photographic plates observation lamps and lanterns which can be used widely in Unit radiographic evaluation of Mechanical , chemical, l aviation , shipbuilding, boiler and power area. Portable durable appearance design, make its extremely suitable for the occasion of liquidity in the field work. Observe screen material from Japan Mitsubishi is used plant type club production of acrylic, has surmounted glass pervious to light quality, good performance, and slow scattering long durability and deformation discoloration, can be observed clearly in 4.0 D black for the film on the small defects, meet the demand of daily use. The product also according to the characteristics of the human eye physiology, limit the LED color temperature in 8000 K or so, not dazzling, even if long time to watch, the eye also not easy fatigue. In view of the LED lights and design of the constant current driving way, more degree ensure the normal work of LED, so as to achieve the purpose of life extension. Low voltage electronic pulse width modulation method adjustment the light to ensure the security of the user. It has feet mode and manual mode, meet different work habit, conserve energy and protect environment.

Different from traditional view pieces the advantages of light rays:

1 novel, trendy andsimple design.

2 portable product used in indoor and laboratory.

3 View pieces density > 4.0 D (without focusing ring)

4 Low thermal noise, no damage to film

5 working life over 50000 hours, the power supply 170 ~ 250 V/AC 47 to 63 Hz AC ,low power loss

6 Safe, fully enclosed heat insulation structure, with DC24V fan heat dissipation.

Technical specifications

To observe the biggest black for value:4.0D

maximum brightness: more than64,000Cd/m2(200,620Lux)

input voltage range:170~250VAC 47~63Hz

uniformity coefficient: g more than 0.95 dissipation coefficient more than0.95

rated output:60W

Continuous highest brightness work 12 hours,Surface temperature rise :less than20℃

contour dimension:465*165*75mm(length*width*height)

view port:200x60mm

Operating weight:3.7Kg
