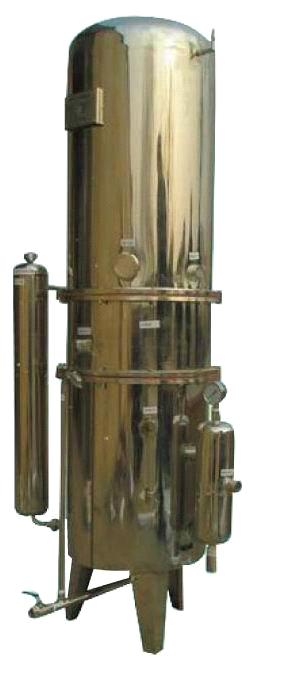

welnic High effect water distiller machine

Inquiry Now

Related products from verified members

provide 10" Stainless steel water filter D...

Price:11.35-11.40 USD/Piece

Min. Order:1,000 Pieces
Reverse Osmosis

Price:10000.00-30000.00 USD/Set

Min. Order:1 Set
ZS Disc Skimmer

Price:6151.00-52724.00 USD/Set

Min. Order:1 Set
Ore Concentrate Hydraulic Filter Press Machine

Price:8,000.00-160,000.00 USD/Set

Min. Order:1 Set
Precision Filter

Price:1,000.00-2,000.00 USD/Piece

Min. Order:1 Piece

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

distilled water machine Product Features

1-Long life

Automatic descaling,extended service life, ensure the water quality and quantity

2-Saving Steam

Steam consumption 102% under air pressure in the 0.1-0.25Mpa, 18% lower than the Tower-type distilled water machine.

3-Saving Water

Good saving water performance, cooling water saving water 60% lower than tower-type water distiller machine.

4-Saving Equipment

1) The equipment could directly use the natural water or city water,do not need pure water or reverse osmosis water.

2) Compared with Multi-effect water distiller machine,this equipment could save the early reverse osmosis equipment (Electrodialysis), mixed bed, which saves investment costs.

5-PH value Adjustable

Using Temperature adjustment method to adjust the distilled water carbon dioxide and ammonia content, reach to adjust the PH of distilled water, adjusting value from 5-7 random adjustable.

6- Output water High quality

The produced water quality conductivity could meet GB <= 2us/cm.

Working Principle

1. Access to the boiler steam,steam pass through the vapor-liquid separator, the water and impurity was discharged from the sewage valve, the pure steam enter into the evaporating pipe, make inside the distiller once distilled water evaporated into steam,steam pass through the membrane filter into the spiral condenser and cooled into distilled water, then outflow from exit.

2.Steam in evaporation tube after release heat, self-liquefaction, pass the resistance steam valve went into the water bucket, the water will be injected into evaporation boiler as add water.

Usage

The equipment apply to large, medium and small pharmaceutical companies, such as oral liquid, eye drops water and so on, all levels of hospital preparation room, chemical research institutes.

Technical parameters

Model Parame No. -ters Classification		GJZZ- 100	GJZZ- 200	GJZZ- 300	GJZZ- 400	GJZZ- 500	GJZZ- 800	GJZZ- 1000
Distilled water Yield (L/H)		100L/h	200L/h	300L/H	400L/h	500L/h	800L/h	1000L/h
Distilled water Temperature (°C)		72-97°C	72-97°C	72-97°C	72-97°C	72-97°C	72-97°C	72-97°C
Distilled water yield:Cooling water Consumption		1:6	1:6	1:6	1:6	1:6	1:6	1:6
Return water Temperature (°C)		70-95°C	70-95°C	70-95°C	70-95°C	70-95°C	70-95°C	70-95°C
Cooling water Pressure(Mpa)		>0.1Mpa	>0.1Mpa	>0.1Mpa	>0.1Mpa	>0.1Mpa	>0.1Mpa	>0.1Mpa
Steam Pressure (Mpa)		0.15Mpa	0.15Mpa	0.15Mpa	0.20Mpa	0.20Mpa	0.25Mpa	0.25Mpa
Steam Consumption (Kg/H)		102	204	306	408	510	816	1020
Steam admission pipe Diameter (mm)		20	20	25	32	32	40	40
Cooling water pipe Diameter (mm)		15	15	20	20	25	32	32
Weight (kg)		80	95	115	135	140	230	260
Shape Dimen-sion	Base dia. (mm)	500	500	500	600	600	560×650	560×650
	Max. dia. (mm)	700	700	700	800	800	1350	1350
	Height(mm)	1450	1650	2000	2200	2400	2500	2600
