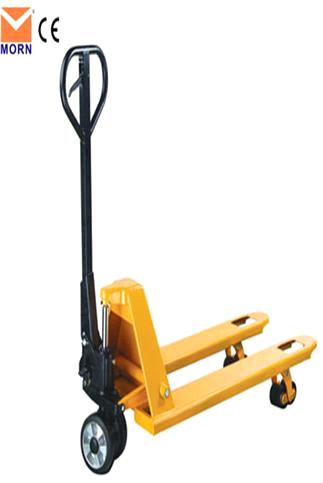

CBY-A Hydraulic trolley

Inquiry Now

Related products from verified members

XPA Electric Platform Truck

Price:5,500.00-8,000.00 USD/Set

Min. Order:1 Set
Transport trolley applied on moving and handlin...

Price:

Min. Order:
Airport Baggage Dolly

Price:

Min. Order:1 Set
Sheaves on the Trolley

Price:

Min. Order:

Product Details

Export Markets:	Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

CBY-A Hydraulic trolley

CBY.AC 1.5 HAND PALLET TRUCK
1. Load capacity: 1500KG
2. Lowered fork length: 85/75/65mm
3. Total lift height: 195/185/175mm
4. Fork length: 1000mm
5. Width over the froks: 520/550mm
6. Weight: 73-92kg
7. Front wheel diameter: 80/70/60mm
8. Steering wheel: 180mm/160mm
9. Color: painted as your order
10. Cue approved
Remarks: The size can be customized according to user needs.

CBY .AC2.0 HAND PALLET TRUCK
1. Load capacity: 2000kg
2. Lowered fork length: 85/75/65mm
3. Total lift height: 195/185/175mm
4. Fork length: 1100/1150mm
5. Width over the forks: 550mm
6. Weight: 73-92kg
7. Front wheel diameter: 80/70/60mm
8. Steering wheel: 180mm/160mm
9. Color: painted as your order
10. Cue approved

Remarks: The size can be customized according to user needs.

CBY .AC2.5 HAND PALLET TRUCK
1. Load capacity: 2500kg
2. Lowered fork length: 85/75/65mm
3. Total lift height: 195/185/175mm
4. Fork length: 1150/1220mm
5. Width over the forks: 550/685mm
6. Weight: 73-92kg
7. Front wheel diameter: 80/70/60mm
8. Steering wheel: 180mm/160mm
9. Color: painted as your order
10. Coe approved
Remarks: The size can be customized according to user needs.

CBY.AC3.0 HAND PALLET TRUCK
1. Load capacity: 3000kg
2. Lowered fork length: 85/75/65mm
3. Total lift height: 195/185/175mm
4. Fork length: 1220mm
5. Width over the forks: 685mm
6. Weight: 73-92kg
7. Front wheel diameter: 80/70/60mm
8. Steering wheel: 180mm/160mm
9. Color: painted as your order
10. Cue approved
Remarks: The size can be customized according to user needs
