Hubei Space Shuanglong Special Purpose Vehicle Co., Ltd.
China Manufacturer with main products: Concrete Mixer Truck, Garbage Compactor Truck, Oil Tanker Semitrailer, Water Sprinkler Truck, Low-Bed Semi-Trailer, Flat-Bed Semi-Trailer,... |

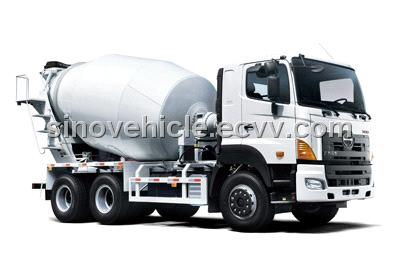

Hino 8M3 Concrete Mixer Truck
| FOB Price: | 50,000.00 - 60,000.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set/Sets per Month |
| Shipping: | Any Chinese Port |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | Waxed or Naked Packing |
Specifications
Hino 8-10cbm Concrete Mixer Truck
|
Technical parameters
of mixing tube
|
Tube geometric volume
|
m3
|
15.1
|
||||||||
|
Stirring volume
|
m3
|
8
|
|||||||||
|
Filling rate
|
%
|
63
|
|||||||||
|
Rate of feeding
|
m3/min
|
≥3
|
|||||||||
|
Rate of delivery
|
m3/min
|
≥2.0
|
|||||||||
|
The remaining rate
|
%
|
≤1.0
|
|||||||||
|
Tube service speed
|
r/min
|
0~12
|
|||||||||
|
Tube dip
|
°
|
13~15
|
|||||||||
|
Hydraulic drive parameters
|
Oil Pump
|
|
Messori PV89(Italy)
|
||||||||
|
Hydraulic motors
|
|
Messori MF089(Italy)
|
|||||||||
|
Decelerator
|
|
Topunion P68(Italy)
|
|||||||||
|
water supply system
|
Ways for supplying water
|
|
Air Pressure Water Supply
|
||||||||
|
Tank volume
|
L
|
350
|
|||||||||
|
Chassis performance
parameters
|
Chassis model
|
|
YC1250FS2PM
|
||||||||
|
Drive mode
|
6x4
|
||||||||||
|
Axle wheelbase/No.
|
mm
|
3640+1410/3
|
|||||||||
|
Front/rear trace
|
mm
|
2060/1855
|
|||||||||
|
Front/Rear Axle
|
7T/ double 13T
|
||||||||||
|
Tire type
|
11.00R20-16
|
||||||||||
|
Approaching/departure angle
|
°
|
20/13
|
|||||||||
|
Front/Rear suspension
|
Mm
|
1410/2480
|
|||||||||
|
Spring Leaf No.
|
10/13,11/13,10/14,11/14
|
||||||||||
|
Gearbox
|
RT11509
|
||||||||||
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
Reverse
|
||
|
12.42
|
8.29
|
6.08
|
4.53
|
3.36
|
2.47
|
1.81
|
1.35
|
1
|
12.99
|
||
|
Max speed
|
km/h
|
90
|
|||||||||
|
Engine parameters
|
Engine Model
|
P11C-UJ
|
|||||||||
|
Emission Standard
|
GB3847-2005,GB17691-2005 EURIII
|
||||||||||
|
Emission/Power
|
ml/kw
|
10520/259(350HP)
|
|||||||||
|
Engine's maximum power
|
Kw/rpm
|
259/2100
|
|||||||||
|
Engine's maximum torque
|
Nm/rpm
|
1454/1100
|
|||||||||
|
Quality parameters
|
Gross weight
|
kg
|
25000
|
||||||||
|
Payload weight
|
kg
|
11170
|
|||||||||
|
Curb weight
|
kg
|
13700
|
|||||||||
|
The vehicle's overall dimension (L*W*H)
|
mm
|
8940*2500*3900
|
|||||||||
