Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

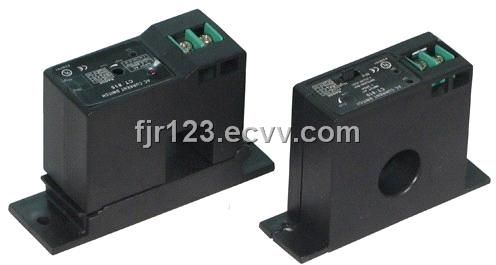

Current switch detail
Application:
Current switch monitor all types of fans, pumps, heating
elements, motors, lamps, and relays.

Feature:
Auto-ranging eliminates lost jumpers
Self-powered and no insertion loss
True digital switching and no leakage
Small compact size
Easy field adjustment with status LED’s
Input / Output isolation via current transformer
Solid-state reliability
Solid, reliable mounting method

Specification data:
Housing Material
UL 94V-0 flammability rated ABS,
Insulation Class 600V
Hysteresis < 2% FS max
Operating Temperature
-30 to 70°C (32 to 160°F) Power Supply None – Self-powered
Response Time < 200 mS Temp. Rating -25 to 60°C ( 0 to 150°F)
Wiring
Connections
Solid Core – Barrier strip
Split Core – Screw terminals (14 to 22 AWG)
Setpoint Range
1-200 Amps for SD models, 1.5-200
for SP models, F model fixed at 0.5A,
Jumper Amp-Turns
Low (none) 1-10
Medium 10-50
High 50-200
Certification: UL E320368, CE,Rohs compliant

The output switch of all devices is normally open, when the monitored current exceeds the trip value as set by the multi-turn
adjustment the switch will close. If the unit has a status LED, it will light to indicate a closed switch. Devices that also
feature a power LED will indicate circuit power whenever there is sufficient current flowing in the conductor to
operate the device circuitry, typically 1 Amp minimum for solid-core units and 1.5 Amp minimum for split-core devices.
(See table on next page)
All devices are factory set at the minimum switch point (adjustment fully clockwise). To increase the set point, while
the monitored load is on, turn the adjustment counter-clockwise until the output turns off as indicated by either the
status LED or a voltmeter connected across the device output to indicate an open switch. Then turn the adjustment clockwise
until the LED comes back on to indicate a closed switch or a voltmeter indication is seen. The adjustment should be
turned slightly clockwise past this point to ensure normal line current variations do not cause false conditions. The GNG
series is not adjustable.

Installation
Disconnect and lock-out all power sources during installation as severe injury or death can result from electrical shock
due to contact with high voltage conductors. Ensure all installations are in compliance with applicable electrical codes
and that the installation is completed by qualified installers familiar with the standards and proper safety procedures
for high-voltage installation. Never rely on status indicating devices only to determine if power is present in a
conductor.
Ensure that the output circuit to be switched is within the device switch ratings as shown in the chart, less than Switch
V Max and less than Switch I Max.
If the device has a selectable range selection jumper, insure it is installed in the correct position for the current being
monitored. Excessive current can damage the sensor. Auto-range devices will monitor any current over the entire range
of Input I Min to Input I Max Amps as shown in the table.
Solid-Core devices require that the line to be monitored be disconnected and routed through the center of the device
while Split-Core units can be easily installed over existing wires without the need to disconnect the circuit.
Install the Split-Core over the conductor to be monitored and close the sensor until it latches, ensuring that the two
halves are properly aligned. Operation of the sensor will be impaired if any dirt particles prevents good contact between
the core pieces when the device is closed, keep the sensor clean when it is opened.
Mount the switch in a suitable location using the two mounting holes in the base of the unit.
The conductor may be looped more than once through the sensor to multiply the sensitivity but this also divides the
maximum currents.
Connect the switch circuit to the two screw terminals using ring or fork type terminals. Typical connections are shown
in the wiring examples. The switchs are not polarity sensitive and operate as a "dry contact".

Model	input range	switch rating Max	trip point	status led
16K-SD-NO-F	0-200A AC	0.3A at135V AC/DC	fixed at 0.5A	red
16K-SD-NO-AL	0-200A AC	0.3A at 135V AC/DC	adjustable	green/red
16K-SP-NO-F	0-200A AC	0.3A at 135V AC/DC	fixed 1A	red
16K-SP-NO-AL	0-200A AC	0.3A at135V AC/DC	adjustable	green/red
04K-SD-NO-AL	0-200A AC	1A at 240V AC	adjustable	green/red
04K-SP-NO-AL	0-200A AC	1A at 240V AC	adjustable	green/red
04K series with no snubber extra model
16K-SD-NC-AL	0-200A AC	0.3A at 135V AC/DC	adjustable	green/red
16K-SP-NC-AL	0-200A AC	0.3A at 135V AC/DC	adjustable	green/red
04K-SD-NC-AL	0-200A AC	1A at 240V AC	adjustable	green/red
04K-SP-NC-AL	0-200A	1A at 240V AC	adjustable	green/red
NO=nomal open,NC=normal close ,sp=SPLIT CORE,SD=SOLID CORE
FCS003	1-40A AC	2.5A at 120V AC	fixed at 1A	N/A
