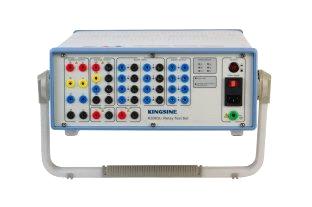

Secondary Injection Test Set K3063Li

Payment Terms:	L/C

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Utility Boxes

Price:

Min. Order:
SPD for PV system combinner box

Price:

Min. Order:500 Pieces
Shi-Fct600/1000/2000/3000 Multi-Circuit Monitor...

Price:70.00-140.00 USD/Piece

Min. Order:1 Piece
TL-G series with gland hole

Price:

Min. Order:

Product Details

Place of Origin:	Beijing in China

Specifications

Friendly PC software for easy operation!

K30 series relay tester is extremely design for overseas user, with Friendly PC software as your need, unique features and functions helps you all the way!

1. Unique self-protection system assure the powerful protection when instrument is operating, automatic stop the output when the network is abnormal ;
2. Unique power switch and amplifier technology, so the output precision and power efficiency and factor are increased, which conforms to international tendency of energy save and environmental protection;
3. With alarm function of housing grounding testing and external voltage input, to guaranty personal security;
4. Two in one of meter and source, with function of both internal and external testing, self-calibration, oscillograph, and the duration of each oscillograph reaches 50S (optional function);
5. Offer independent Aux. DC to tested devices, 0 ~ 300V/0.6A (Poleless and adjustable);
6. Function of transducer and energy meter testing (optional function);
7. Testing interface offer unique output monitoring function and Pre-curve-tracing function, helps more on the spot analysis;

Technical Data of K3063Li

Voltage generators
Setting Range	4-phase AC (L-N)	4 x 0 ... 300 V
	2-phase AC (L-L)	2 x 0 ... 600 V
Power	4-phase AC (L-N)	4 x 110VA, at 0 ... 300 V
	2-phase AC (L-L)	2 x 110VA, at 0 ... 600 V
Accuracy		<0.07% reading + 0.03% range guaranteed at 0 ... 300 V <0.02% reading + 0.01% range typical at 0-300V
Resolution		1mV
Current generators
Setting Range	6-phase AC (L-N)	6 x 0 ... 30 A
	3-phase AC (2L-N)	3 x 0 ... 60 A (Group A II B)
	1-phase AC (3L-N)	1 x 0 ... 180 A
Power	6-phase AC (L-N)	6x 450VA , at 0 ... 30A
	3-phase AC (2L-N)	3x 600VA, at 0 ... 60A (Group A II B)
	1-phase AC (3L-N)	1 x 1500 VA, at 0 ... 180A (Max.)
Accuracy		<0.07% reading + 0.06% range guaranteed at 0-30A <0.02% reading + 0.02% range typical at 0-30A
Resolution		1mA
Generators, general
Frequency	Range	0 ... 1000 Hz
	Accuracy / drift	Error < 0.001Hz at 10 ... 65Hz, Error < 0.01Hz at 65Hz...450Hz Error < 0.02Hz at 450Hz...1000Hz
	Resolution	0.001Hz
Phase	Range	- 360° ... +360°
	Accuracy / drift	Error < 0.2 °
	Resolution	0.1°
Timer	Range	Infinite
	Accuracy / drift	Error<0.1ms
DC generators
Voltage ranges		0 ... 300V/110W
Current ranges		0 ... 20A/300W
Accuracy		<0.07% reading + 0.03% range guaranteed at 0-300V <0.04% reading + 0.02% range typical at 0-300V
		<0.14% reading + 0.06% range guaranteed at 0-20A <0.05% reading + 0.02% range typical at 0-20A
Resolution		1mA; 1 mV
Aux DC Supply
Range		0...300V/110W
Binary inputs
Number		8 pairs
Compatible Voltage		10V ... 250V DC
Binary outputs
Number		4 Pairs
Capacity		250V/3A AC/DC
Synchronization
Synchronization mode		GPS
Harmonic
Harmonic overlap times		2 ... 20 times
Power supply
Nominal input voltage		85V…264V ac
Power		2000VA
Nominal frequency		47Hz….65Hz
Environmental conditions
Operation temperature		-5°C ... 55 °C
Storage temperature		-20°C ... 75 °C
Humidity range		5% ... 90 %, non-condensing
Weight		17.5 KG
Dimensions		480(D)×140 (W)×360 (H) mm
PC connection		RJ45

K30 Series Protection Relay Test Set:

Model	Channels	AC Outputs
K3063i / K3063Li	10 output channels	630A/340A/4*300V
K3030i / K3030Li	7 output channels	330A/4300V
K3066	13 output channels	620A/340A/7*130V
K3063	10 output channels	620A/340A/4*130V
K3040	7 output channels	340A/4130V
K3030	7 output channels	330A/4130V

Major functions:

Items	IEEE(R) No.
Synchronization relay
Fault transplay
GPS Synchronization
Overcurrent relays	50/76
Inverse time overcurrent relays	51
Undercurrent relays	37
Ground fault relays	50
Directional overcurrent relays	67
Directional ground fault relays	67N
Overvoltage relays	59
Undervoltage relays	27
Directional voltage relays	91
Directional power relays	32
Power factor relays	55
Differential protection (differential circuits)	87
Distance protection equipment (phase by phase)	21
Negative sequence overcurrent relays	46N
Motor overload protection	51/86
Automatic reclosing devices	79
Tripping relays	94
Voltage regulating relays
Overimpedance relays, Z>
Underimpedance relays, Z
Time-delay relays
