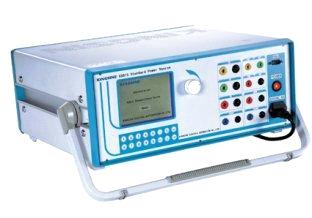

RS232 port KS813 Standard Power & Calibrator

Payment Terms:	L/C

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Fujitsu FTP638MCL101, FTP-638MCL103 thermal pri...

Price:18.00-19.00 USD/Piece

Min. Order:100 Pieces
OMR50FS

Price:1700.00-5500.00 USD/Set

Min. Order:1 Set
IGBT Melting Machine (XZ-40B)

Price:

Min. Order:1 Set

Product Details

Place of Origin:	Beijing in China

Specifications

Large LCD display, English pop-up menus in operations!

Features &Function

1. Capable of calibrating all kinds of indicating instruments such as DC meters, AC meters, phase meters, frequency meters, power meters, power factor meters, multimeters, energy meters and electric measurement transducers, etc. Automatic calibration mode and manual calibration mode are built-in of KS833.
2. These built-ins are high precision standard sources that respectively relate to voltage, current, phase, power factor and harmonic.Capable of outputting standard voltage, current, phase, active power, cross-phase reactive power and true reactice power, make use of software to realize closed loop control on all outputs guaranteeing its low drift and its annual stability. Current generator provides the function of open-circuit protection and open-circuit alert in itself. While voltage generator possesses the function of short-circuit protection.
3. Can freely output 2-31 times harmonics, including: Standard output at Grade 0.1 for 2nd-19th harmonics, and satandard output of Grade 0.2 for 20th-31st harmonics.
4. Large LCD display, all English pop-up menus for these operations:①rotary encoder operation ② slight-touch keyboard operation ③operation under PC Windows System.
5. Built-in RS232 port, allows software upgrade without opening up the external box of the equipment; and calibrated data can be uploaded into PC computer at users’ convenience.
6. The shock and impact resistance external box is made of high intensity aluminum alloy. Inside are reliable high-power heating radiator units, and the equipment is durable to use.

Technical Data of KS813

Voltage (AC) Output/Measure
Shift	10V/30V/100V/300V/750V Auto switch
Adjusting range	0 ... 120%
Min Adjusting Unit	Shift x 0.01%
Resolution	Shift x 0.01%
Accuracy	0.05%RG (RG abbr. range)
Stability	0.01%/1min
Voltage (DC) Output/Measure
Shift	100mV/1V/10V/30V/100V/300V/750V
Adjusting range	0 ... 120%
Min Adjusting Unit	Shift x 0.01%
Resolution	Shift x 0.01%
Accuracy	0.05%RG (RG abbr. range)
Stability	0.01%/1min
Current (AC) Output/Measure
Shift	100mA/1A/5A/10A/25A Auto switch
Adjusting range	0 ... 120%
Min Adjusting Unit	Shift x 0.01%
Resolution	Shift x 0.01%
Accuracy	0.05%RG
Stability	0.01%/1min
Current (DC) Output/Measure
Shift	1mA/10mA/100mA/1A/5A/10A/25A Auto switch
Adjusting range	0 ... 120%
Min Adjusting Unit	Shift x 0.01%
Resolution	Shift x 0.01%
Accuracy	0.05%RG
Stability	0.01%/1min
Power Output/Measure
Min Adjusting Unit	Shift x 0.01%
Resolution	Shift x 0.01%
Accuracy	0.05%RG (PF≥0.5)
Stability	0.01%/1min
Frequency Output/Measure
Range	45.000...65.000Hz
Min Adjusting Unit	0.001Hz
Accuracy	0.01%RD
Phase Output/Measure
Range	0.00° ... 359.99°
Min Adjusting Unit	0.01°
Resolution	0.01°
Accuracy	0.05°
Power factor Output/Measure
Output range	-1 ... 0 ... +1
Min Adjusting Unit	0.0001
Accuracy	0.0005
Harmonic Output/Measure
Set range	2 ... 31 times
Content	Voltage, Current≤30%( compared with Fundamental Wave)
Harmonic output accuracy	0.1%(2 ... 19 times, compared with Fundamental Wave)
Resolution	0.2%(20 ... 31 times, compared with Fundamental Wave)
Harmonic Phase	0.00° ... 359.99°
Output Voltage and Current distortion
<0.2%(non capacitance load)
Max AC Output Load
Voltage 25VA, Current 25VA
Index measure reference condition
Environment temperature	22±1 °C
Work temperature	0°C ... 40°C
Humidity range	≤85 %
Work power supply range	220VAC±15%, 50Hz
Weight	24KG
Dimensions	450(D)×180 (W)×380 (H) mm
PC connection	RS232

Major functions:

	KS803	KS813	KS823	KS833
AC Standard Sources	●	●	●	●
DC Standard Sources	○	●	●	●
Harmonic Standard Sources	●	●	●	●
Indicator Test	○	○	●	●
Transmitter Test	○	○	○	●
Energy Meter Test	○	○	○	●

Note: ● : With the corresponding function modules

○: Without the corresponding function modules
