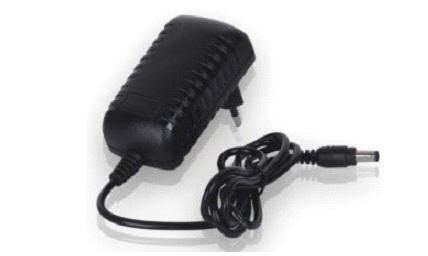

AC/DC Adapter

Price:

Min. Order:

Export Markets:	North America, Oceania, Mid East, Western Europe

Specifications

JXB012-120100B

Input voltage range: 90-264Vac

Rate voltage: 100-240Vac

Input current <0.3A

Inrush current <20A

Leakage current <1mA

Over load protection >2.5A

Over-voltage protection: 15V

Start: 100VAC<3S

Hold time: 240VAC>20mS

Withstand voltage: 3Kvac 5mA 1Min

Temperature: 0℃-+ 40℃

Humidity: 20% -90% RH

Safety Standards: GB4943-2001 IEC60950

EMC: En55022

Size: 74.5*42*30mm

Output: 12V±5% Efficiency: >=80%

Power: 12W
