Shandong Pengcheng Special Ceramics Co., Ltd.
China Manufacturer with main products: Evaporation Boats, Boron Nitride Products, Conductivity Ceramics, Boron Nitride Ceramic |

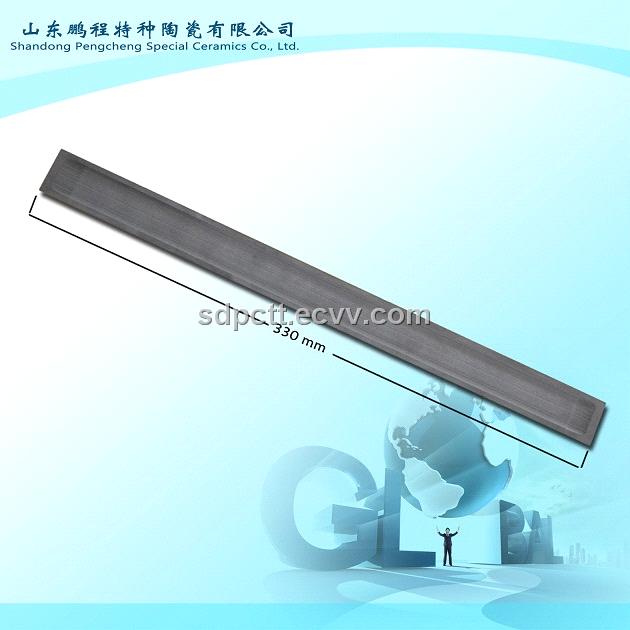

Boron Nitride Evaporation Boat for metallized films
| FOB Price: | 1.00 - 100.00 USD/Piece |
|---|---|
| Supply Ability: | 600,000 Piece/Pieces per Year |
| Shipping: | express,by ship,by air |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Vacuum aluminum bag,cartons |
Specifications
Evaporation Boats are widely used as containers of melting aluminum, zinc sulfide and so on in vacuum evaporation technology.
(1)Standard:
60×8×3,110×16×9,110×20×10,105×20×10,120×24×10,110×26×10,130×30×10,
110×30×10,130×35×10,150×35×10,165×30×10,330×25.4×11.5
Can design other standards according to customers' requirements
110×30×10,130×35×10,150×35×10,165×30×10,330×25.4×11.5
Can design other standards according to customers' requirements
(2) Physical performances:
1.Density:2.9-3.1g/cm^3
2.Resistivity:300-2000υΩ/cm
3.Porosity:≤10%
4.Thermal expansion coefficient :(4~6)×10-6cm/cm°C
5.Temperature coefficient of resistance:(5~6)×10-4/°C
6.Max working temperature :750°C
2.Resistivity:300-2000υΩ/cm
3.Porosity:≤10%
4.Thermal expansion coefficient :(4~6)×10-6cm/cm°C
5.Temperature coefficient of resistance:(5~6)×10-4/°C
6.Max working temperature :750°C
(3) Tehnology standard:
1.Length:L±0.5
2.Width:B-0.1
3.Thickness:H±0.18
4.Bending strength:≤0.5mm
5.Undersurface roughness :≤0.1mm
6.Two sides nonparallelisn:≤0.2mm
(4)Using conditions:
1.working current:400-900A
2.working voltage:5-15V
3. working temperature:1300 - 1750°C
4.evaporation rate:0.3-0.5g/ minute /cm^2
5. service life :10-15hours
2.working voltage:5-15V
3. working temperature:1300 - 1750°C
4.evaporation rate:0.3-0.5g/ minute /cm^2
5. service life :10-15hours
(5)Properties of products:
1.Good thermal performance and good stability.
2.Good insulativity, Abrasion-resistance
3.Good processing performance, Precision can reach 0.01mm
4.Good chemistry stability,can not reaction with Metal And acid.
5.Pierce Infrared and microwave,absorption neutron
6.non-poisonous
(6)Application:
As melting aluminum and zinc sulfide, using in vacuum evaporation technology.
A new generation of Conductive Ceramic Composite Evaporation Boat features:
1. Vacuum hot pressing - The whole sintering processes are in a vacuum with inert gas protection, ensuring a high temperature sintering environment and the promotion of the product after the evaporation boat with good chemical stability.
2. As ZGH-2 in a vacuum sintering furnace is used with a hot pressing process , it utilizes a dual compression mode, and will be guaranteed a sintered body of the bulk density of consistency.
3. As ZGH-2 in a vacuum hot pressing sintering furnace is used for the entire process with automatic control and digital display, the new ceramic composite boat has better physical performance.
4. As our new generation of ceramic composite boat takes the optimized four components of synthetic structure, instead of the usual 2 and 3 structures, Our product contains the advantages as follows,
---Increased evaporation boat thermail shock resistance and flecural strength , ease of material from the different thermal expansion coefficients of variance of the boat therefore avoiding the evaporation of variance of the boat, which in turn prevents the evaporation operating under high-temperature due to heat build up caused by stress fracture .
---Enhanced evaporation of metal boat on the humid , aluminium easy solution to the entire surface through of the boat , raising the evaporation efficiency.
---Increased evaporation boat solution, corrosion resistant aluminum capacity therefore extending the working life of the boat .
