Anhui Green Imp. & Exp. Co., Ltd.
China Manufacturer with main products: AC Motor Capacitor, BOPP Capacitor Film, Metallized Polypropylene Film, Aluminum Metallized Polyester Film |

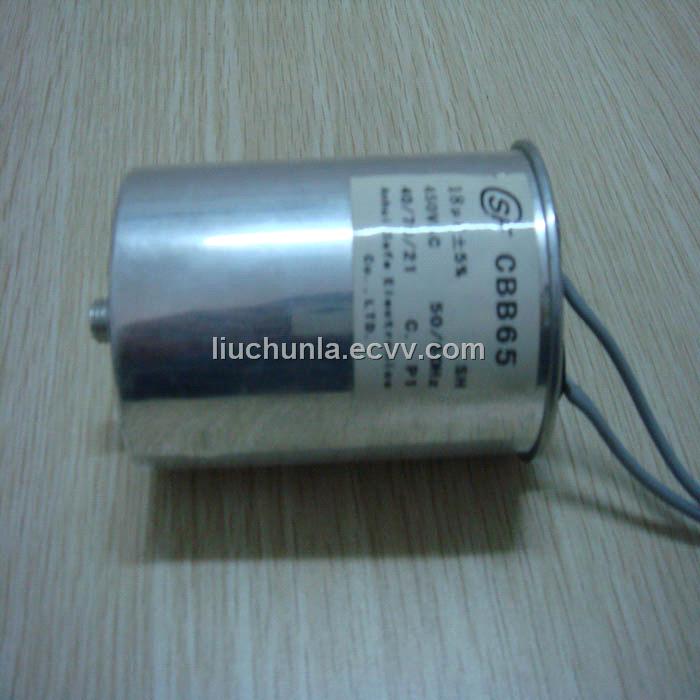

metallized polypropylene film capacitor
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications
capacitor,AC capacitor,motor capacitor,AC motor capacitor,film capacitor,capacitor CBB65,CBB60,CBB61,film capacitor
1)Rated voltage:200V, 250V, 370V, 400V, 440V, 450V
2)The motor capacitor used in air-condition and high power illuminator
2)The motor capacitor used in air-condition and high power illuminator
Features:
The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric. The elements are tight winded by high-velocity winders and canned in aluminum cases. Refined castor oil is adopted as impregnation agent treated in vacuum and high temperature condition. Those make a more reliable performance and longer lifespan for a capacitor. Meanwhile the second generation of mechanical anti-explosion design is selected as blast-proof secure measure for our capacitors. The reliability is more affirmatively enhanced.
Applications:
Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for family air conditioners and high power illuminators for the sake of power factor compensation.
Technical Specifications:
Standard:IEC 60252-1:2001
Standard:IEC 60252-1:2001
Climate type:40/70/21 or 40/85/21
Capacitance tolerance:± 5%
I.R:≥3000S(MΩ·µF)
Dielectric dissipation factor:tgδ≤0.002 (50Hz~100Hz)
Capacitance tolerance:± 5%
I.R:≥3000S(MΩ·µF)
Dielectric dissipation factor:tgδ≤0.002 (50Hz~100Hz)
Application requirements:
Altitude:≤2000m
Residual voltage while loading: less than 10% of rated voltage.
Allowed maximum voltage: less than 1.1 times of rated voltage
Permissible maximum current: less than 1.3 times of rated current.
Altitude:≤2000m
Residual voltage while loading: less than 10% of rated voltage.
Allowed maximum voltage: less than 1.1 times of rated voltage
Permissible maximum current: less than 1.3 times of rated current.
