Specifications
Application,performance and Characteristics:

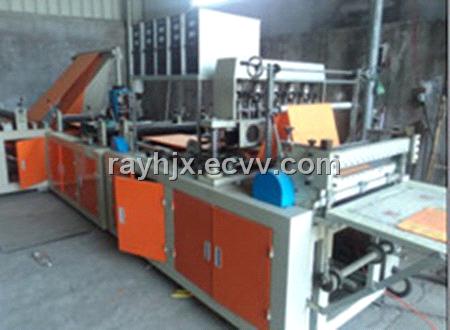

This machine is dedicated to producing non-woven fabric shopping bags,flat-mouth bags andshoe bags.
1.The compiete machine is arranged in L shape(configurabie).
2.This machine is of control by microcomputer,material drawn by thestep motor(servomotor can beassembled).
3.Discretional fixed length,step length photoelectrical tracking,hence smooth,the machine will stop auomatically when the subject is lost.
4.Autostop,automatic punching and threading up can be preset
5.Automatic deviation rectifying,tersion control.
6.During the process of shoping bag production,cut the margins antomatically while sealing,ang discharge the scrap automatically.
7.Frequency speed control,hence stable in material draught and low fault rate.
8.Multi-ultrasonic devices are used to ensure solid and smooth welding on the bags.
This machine is dedicated to producing non-woven fabric shopping bags,flat-mouth bags andshoe bags.
1.The compiete machine is arranged in L shape(configurabie).
2.This machine is of control by microcomputer,material drawn by thestep motor(servomotor can beassembled).
3.Discretional fixed length,step length photoelectrical tracking,hence smooth,the machine will stop auomatically when the subject is lost.
4.Autostop,automatic punching and threading up can be preset
5.Automatic deviation rectifying,tersion control.
6.During the process of shoping bag production,cut the margins antomatically while sealing,ang discharge the scrap automatically.
7.Frequency speed control,hence stable in material draught and low fault rate.
8.Multi-ultrasonic devices are used to ensure solid and smooth welding on the bags.
Main technical parameters:
|
Type |
ONL-B600
|
ONL-B700
|
ONL-B800
|
|
Production Speed
|
40-120pcs/min
|
40-120pcs/min
|
40-120pcs/min
|
|
Bag-making Width
|
100-600mm
|
100-700mm
|
100-800mm
|
|
Bag-making Length
|
150-480mm
|
150-580mm
|
150-680mm
|
|
Bag-making Thickness
|
30-80g
|
30-80g
|
30-80g
|
|
Power Supply
|
380V/220V
|
380V/220V
|
380V/220V
|
|
Total Power
|
5Kw
|
5Kw
|
5Kw
|
|
Overall dimension(LXWXH)
|
7600*1650*1800mm
|
7600*1650*1800mm
|
7600*1850*2000mm
|
