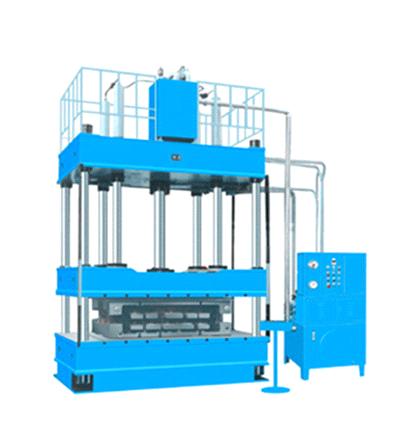

Free Forging Hydrulic Press

Shipping:	By sea
Payment Terms:	L/C, T/T

Inquiry Now

Supplying cast iron manhole cover with frames

Price:800.00-1,000.00 USD/Ton

Min. Order:1 Ton
Aluminum Cast PAR King

Price:110.00-120.00 USD/Piece

Min. Order:1 Piece
Die Casting

Price:1000.00 USD/Kilogram

Min. Order:1 Kilogram
Hot Forging Hydrualic Press

Price:

Min. Order:1 Set
Aluminium Casting

Price:

Min. Order:

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	AS PER YOUR REQUEST

Specifications

Our products can be customized according to customer needs, can adapt to different processing requirements.

Project	Unit	ZDYJ-800	ZDYJ-1250	ZDYJ-1600	ZDYJ-2000	ZDYJ-2500	ZDYJ-3150
Nominal power KN	KN	8000	12500	16000	20000	25000	31500
Rated pressure of working medium	Mpa	25	25	25	25	25	25
Equipment forging die distance between die face	mm	2500	2500	3000	3000	3900	4000
Li slide stroke	mm	1300	1300	1400	1600	1800	2000
Column pitch	mm	2200×1260	2200×1260	2900×1550	2900×1600	3400×1600	3500×1900
Column diameter	mm	280	320	330	400	470	500
Mobile table size (wide×length×hight)	mm	3600×1300×300	3600×1300×300	4000×2000×300	4200×1600×300	5000×2000×350	6000×2000×350
Mobile table travel (before and after)	mm	2200	2200	2500	2500	3000	4000
Return force	KN	1000	1500	1700	1500	2000	2000
Mobile table face		3	3	3	3	3	3
Forging eccentricity	mm	120×80	150×75	150×75	150×100	150×100	150×120
The number of pressure classification		1	1	2	3	2	2
Level pressure	KN	8000	12500	10000	7000	15000	15000
The second stage pressure	KN			16000	14000	25000	31500
The third level pressure	KN				21000
