Fiber Optic Patch cord

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

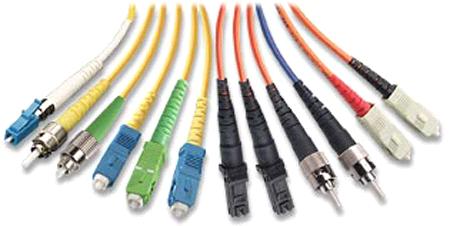

We supplies MU-MU,MU-LC,MU-SC,MU-ST,MU-FC,MU-MTRJ,MTU-E2000,fiber optic jumpers, fiber optic patch cables, single mode,9/125,50/125,multimode , 62.5/125,simplex,duplex,custom length and cable type. Other specification can be done according to the customer request
MU fiber optic cable is fully compatible with NTT- MU style products, and are NTT and JIS compliant. This small form factor connector is approximately half the size of the SC connector, and has a push-pull style design. The MU fiber patch connector features a pre-assembled body and precision molded plastic housing, and a free floating ferrule measuring 1.25m O.D. held in place with a precision spring.
Applications
CATV, LAN, MAN, WAN, FTTH, FTTB, SONET/SDH,
ATM, DWDM
Fiber-optical communications system
Teat&Measurement, Industry, Medical
Feature
High density installation
Excellent optic performance
Available for both SM, MM, simplex and duplex
0.9mm, 1.8mm cable diameter option
PVC or LSZH cable
Standards
IEC 61 754-6, "Fiber optic connector interfaces - Type MU connector family"
TIA/EIA 604-17 "Fiber optic intermateability standard – Type MU
Specifications
Patch Cord Connector MU/PC(SM) MUUPC(SM) MU/APC(SM) MU/PC(MM)
Return Loss(dB) ≥45 ≥50 ≥60 ≥35
Insertion Loss(dB) ≤0.2
Repeatability(dB) ≤0.1
Durability(1/Matings) ≥500
Operation Temperature(ºC) -25~+70
Tensile Strength ≥70(¢1.8), ¢0.9
Category: Fiber Optic Patch Cord & Pigtail
