Aluminium Case Capacitor CBB65 1~100uf

FOB Price:	1.50 - 5.00 USD/Piece
Supply Ability:	3,000 Piece/Pieces per Month
Shipping:	By AIR, SEA, EXPRESS
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

5.5V 0.47F Super Capacitor

Price:

Min. Order:
Gold Capacitor (2.7V1.0F)

Price:

Min. Order:100 Pieces
Capacitor Foil and Cable Foil/Aluminum Capacito...

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Anhui in China
Packaging Details:	Export Standard Carton

Specifications

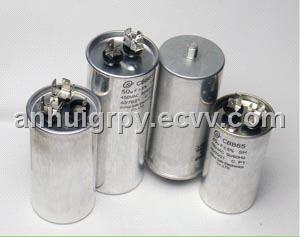

Aluminium Case Capacitor CBB65 1~100uf

The capacitor takes heavy-edge metallized Al/Zn PP film or web-like safety film as dielectric. The elements are tight winded by high-velocity winders and canned in aluminum cases. Refined castor oil is adopted as impregnation agent treated in vacuum and high temperature condition. Those make a more reliable performance and longer lifespan for a capacitor. Meanwhile the second generation of mechanical anti-explosion design is selected as blast-proof secure measure for our capacitors. The reliability is more affirmatively enhanced.

CBB65 series motor run capacitor has features of small size, light weight, small tangent in waste angle, and good self-concrescence. Applied to the starting and better working of sing-phase motor in 50Hz(60Hz) frequency AC power system.

Technical Specification
Executive standard: GB36671-997
Technical features:
Climate type: 40/70/21
Capacitance tolerance: +-50%
LR: >=3000M&Omega. &muF
Dielectric dissipation Factor: Tg&delta<=0.002(50Hz-100Hz)

Rated Voltage: 200VAC,250VAC,370VAC,400VAC,440VAC,450VAC,500VAC
Norminal Capacitance: 3,4,5,7.5,10,12.5,15,17,20,22.5,25,30,35,40,45,50,55,60,70,80,100,25+5,30+5,35+5,50+5,60+5,70+5,80+5...MDF,microfarad
