Home  >Products Catalog > Fire Truck > Dongfeng 153 Water Tank Fire-Fighting Truck

Dongfeng 153 Water Tank Fire-Fighting Truck SafeBuy Supplier Member

Shipping: based on the quantity
Payment Terms: L/C, T/T, bank transfer
Update Time: 2017/2/17
Export Markets: Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe
Place of Origin: Hubei in China
Packaging Details: nude, waxed in contaier or bulk, or roro packed

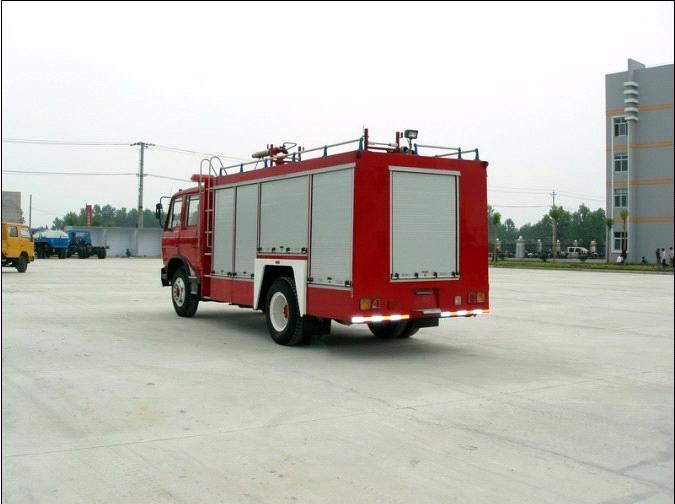

Dongfeng 153 water tank fire-fighting truck
153-JDF5150GXFSG60E  water fire truck
Entire Vehicle Main Parameter  Total Weight(kg) 14900
Payload weight (Kg) 6070
Kerb Weight(kg)   8380
Overall Dimension              (L * W * H) (mm) 7900×2470×3390
 Chassis Chassis Mode EQ1141KJ
Engine Parameter Mode EQ180-20
Power(kw) 132
Displacemint (ml) 4500
Fuel Type                   Diesel
Functional Parameter  Max Speed (km/h) 90  F/R Tread(mm)       /
 Leaf Spring 7/5+5  F/R Overhang (mm) 1025/2135
 Axle Load(kg)  / Approach/Departure angle(°) 25/15
Tire Size 10.00-20 Number of Tires 6
Wheelbase (mm)  3360  Number of Axles 2
Specialized Device Tank Parameter Water Tank Capacity:6t
Special Parameter Fire Pump Model:BS30, Flowing Rate: 30L/S

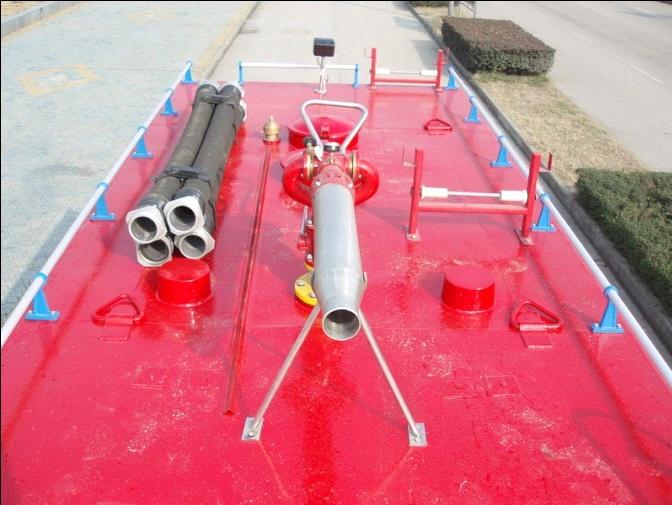

Fire Monitor Model:PS40, Flowing Rate:40L/S, Pressure:0.8-1.0Mpa,Range: ≥60m
 Dongfeng 153 water tank fire-fighting truck is refitted with EQ1141G7DJ chassis respectively ,With reasonble arrangement,novel modeling,rear-ship pump and compact structure ,its very easy using and maintenance,Widely used in petrol-chemical enterprise ,oil depot ,storehouse,shop and cterminal market,also is the main fire truck for professional fire brigade of large and medium city.
