Specifications
I. Application:
for 3C consumer product .
II.Function Advantages:
1.Model:MP3450D(DIY type )
2.Cell type:Li-Polymer
3.Cell Capacity:51Wh(13600~14000mAh)
4.Output port:Two independent output port: 1.DC OUT 2. USB OUT
5.DC OUT Voltage:5V,6V,7.5V,9V,12V,14V,16V,19V
6.DC OUT current:4A(constant );4.5A(Max.)
7.OUT DC/DC efficiency:92~94%
8.DC OUT capacity:48Wh (12900mAh)
9.USB OUT voltage:5.2V
10.USB OUT current:2A( constant ) ; 2.5A( Max)
11.Input Charging Voltage:8~20V
12.Charging Time:About 3h
13.Charging method:1. AC power adapter . 2. Car charger . 3. Solar panel
14.UPS function:with
15.Pass through charging:with
16.Capacity extended:can extended capacity to 100Wh , 150Wh , 200Wh
17.Size:174*84*22.5mm
18.Weight:430g
2.Cell type:Li-Polymer
3.Cell Capacity:51Wh(13600~14000mAh)
4.Output port:Two independent output port: 1.DC OUT 2. USB OUT
5.DC OUT Voltage:5V,6V,7.5V,9V,12V,14V,16V,19V
6.DC OUT current:4A(constant );4.5A(Max.)
7.OUT DC/DC efficiency:92~94%
8.DC OUT capacity:48Wh (12900mAh)
9.USB OUT voltage:5.2V
10.USB OUT current:2A( constant ) ; 2.5A( Max)
11.Input Charging Voltage:8~20V
12.Charging Time:About 3h
13.Charging method:1. AC power adapter . 2. Car charger . 3. Solar panel
14.UPS function:with
15.Pass through charging:with
16.Capacity extended:can extended capacity to 100Wh , 150Wh , 200Wh
17.Size:174*84*22.5mm
18.Weight:430g
III.Operation panel:
IV.Operation guide
1.Indoor Application —— working for Pass through charging:
The AC power adapter will offer power to laptops working and charged laptop’s internal
battery firstly. It will follow charged MP3450D after laptop’s internal battery has charged
fully. The MP3450D also will be charged fully at finally. It will total charged fully after 7~8h by
connected as this diagram.if empty of all battery ( MP3450D&Laptop’s internal battery).It
doesn’t matter the laptop is operated or not . It will auto stop charging MP3450D battery.
while offer to Laptop’s loading current higher than 2±0.2A. ; it will start charging MP3450D if
Laptop’s loading current less than 2±0.2A. The Laptop’s demand power always priority one
of support from AC Power adapter.
2. Outdoor application ————Back-up power for your device:
Please check loading device demand voltage/current before connected the DC OUT port of
MP3450D. It will shut down if demand current over MP3450D maximum output 4.5A.
V.Packing accessories:

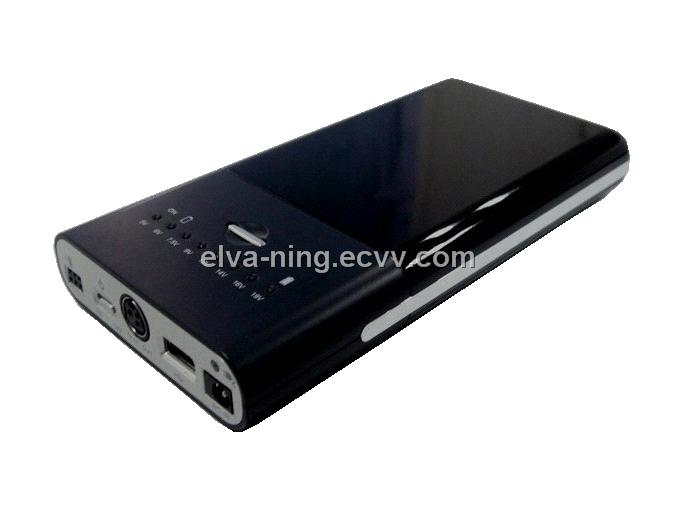

VI. Product clear picture:
