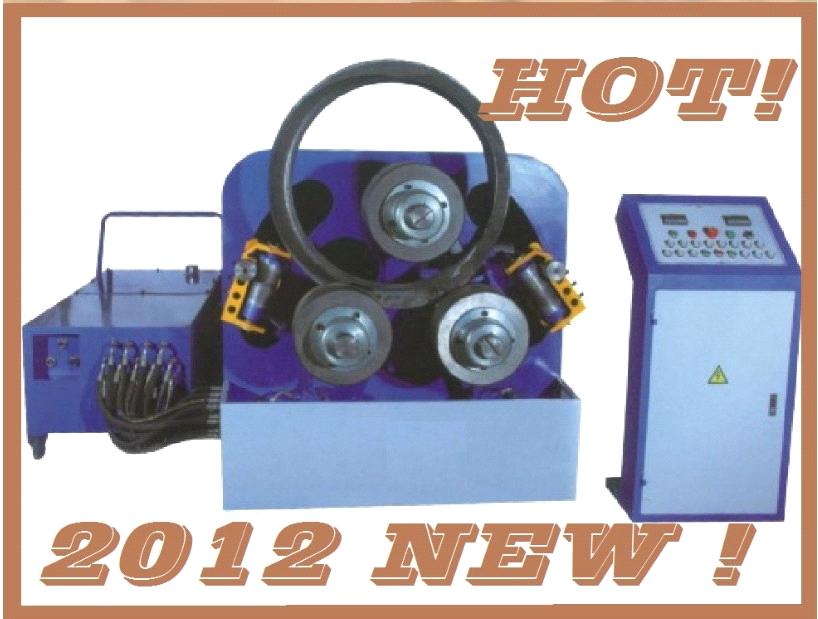

angle Rolling Machine/channel Rolling Machine/Flat Bar Rolling Machine
| Supply Ability: | 5,000 Set/Sets per Year |
|---|---|
| Shipping: | 30 DAYS |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Anhui in China |
| Packaging Details: | NUDE |
Specifications
1,angle iron rolling machine/channel rolling machine/flat bar rolling machine
2, Easy operation
3, CE and ISO certification
2, Easy operation
3, CE and ISO certification
The angle iron rolling machine/channel rolling machine/flat bar rolling machineg machine Features:
1.The main three rollers and curvature adjustment of Besco angle rolling machine/channel rolling machine/flat bar rolling machineg machines is drove by hydraulic system, which with stability performance.
2.Besco angle rolling machine/channel rolling machine/flat bar rolling machineg machines adopt grating ruler for curvature range adjustment, which with high precision. Besco angle rolling machine/channel rolling machine/flat bar rolling machineg machines is allowed to adjust curvature either by two rollers meanwhile, or by single roller according to set, which is easy to operate.
3.Besco angle rolling machine/channel rolling machine/flat bar rolling machineg machines use touch panel and PLC electrical control system, with advanced technology and stable performance;
4.With fault auto-detecting system and alarm function, and Besco angle rolling machine/channel rolling machine/flat bar rolling machineg machines display error information and solving suggestion on screen;
5.Besco angle rolling machine/channel rolling machine/flat bar rolling machineg machines equipe counting function, to record the quantity of processed workpieces
6.All bending data can be saved in PLC of Besco angle rolling machine/channel rolling machine/flat bar rolling machineg machines as permanent memory, and can be use at any time.
7.Besco angle rolling machine/channel rolling machine/flat bar rolling machineg machines have manual, semi-automatic and automatic work mode. Powerful cooling system allows the Besco angle rolling machine/channel rolling machine/flat bar rolling machineg machines could be used in tropic area stably;
8.Besco angle rolling machine/channel rolling machine/flat bar rolling machineg machines allow to process varies of metal profile, such as angle iron, flat steel, round pipe and other material of abnormal section profile, through change the groove of bending dies;
9.Besco angle rolling machine/channel rolling machine/flat bar rolling machineg machines is able to bend large size profile, while no need to make super size bending die.
Parameters:
| TPYE(W24Y/W24YPC/W25K-) | 30 | 45 | 75 | 100 | 140 | 180 | 260 | 320 | 400 | 500 |
| profile Max.bend section module(cm*2) | 30 | 45 | 75 | 100 | 140 | 180 | 260 | 320 | 400 | 500 |
| bending speed(m/min) | 5 | 5 | 5 | 5 | 5 | 4 | 4 | 4 | 4 | 4 |
| profile yield limit (Mpa) | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| Max hydraulic pressure(kw) | 8 | 12 | 14 | 16 | 16 | 16 | 18 | 20 | 25 | 25 |
| oil pump pressure(kw) | 12 | 16 | 16 | 21 | 21 | 21 | 25 | 31.5 | 31.5 | 31.5 |
| measure ment(L*W*H)(M) | 1.6*1.2*11 | 1.8*1.5*1.2 | 2.1*1.8*1.6 | 2.2*1.9*1.6 | 2.5*2.2*1.6 | 3.1*2.3*1.8 | 3.6*2.6*1.8 | 4.0*3.2*2 | 4.5*3.5*2.2 | 5.5*4.0*2.5 |
| weight(kg) | 3400 | 5000 | 7000 | 9000 | 11000 | 16000 | 23000 | 30000 | 36000 | 4 |
