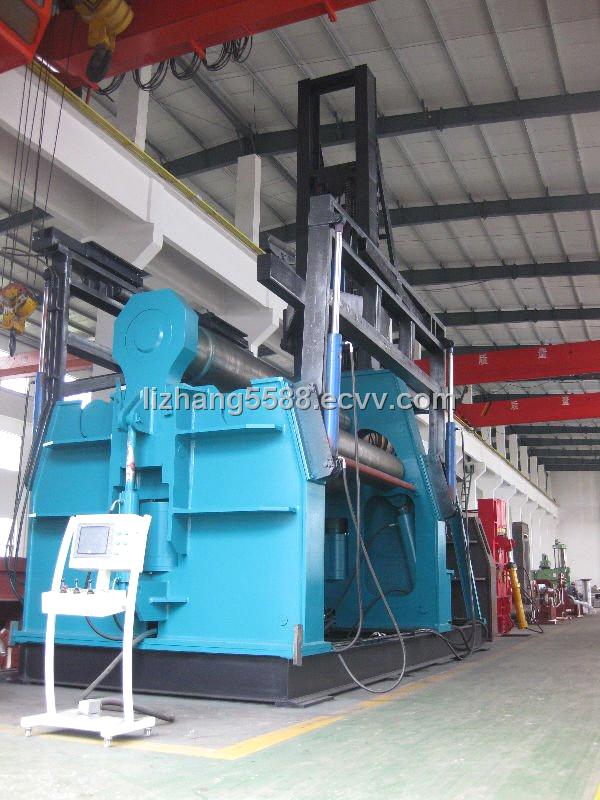

HDLW12 Four Roller Roll Forming Machine
| FOB Price: | 20,000.00 - 600,000.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set/Sets per Month |
| Shipping: | 30days after po comfirmed |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | Wrapped with plastic films and fixed by steel wires in the containers |
Specifications
Detailed Product Descriptions for CNC four roller plate Roll Forming Machine:
Performance:
The four-roller rolling machine adopts the four roller structure with the upper and lower roller as the drive, and provides the plate materials with torque through the engagement of the planetary reducer with the upper and lower roller, the lower roller can make vertical movement so as to clamp the plate materials tight. On both side of the lower roll with the side-roller can be driven by hydraulic cylinders to make arc-down. Four rollers all used the spherical roller bearings.
Characteristic
1. Pre-bending and rolling-up can all finished by this machine;
2. Digital displays(3 pieces) are provided by locating setting of roll positions;
3. Hydraulic drop and for ease of finished cylinder removal;
4. No slide of plate during rolling process;
5. Conical bending device;
6. Emergency system: safety string barrier around the machine and emergency push button;
7. Machine is equipped with two speed working system which is controlled from mobile control panel.
|
Specification
|
Max width of coiled plate (mm)
|
Width of the roller (mm)
|
Max thickness of coiled plate (mm)
|
Vertical Margin (mm)
|
Pre-bending ability (σ S≤ 245MPa)
|
Rolling – up ability (σ S≤ 245MPa)
|
Diameter of top shaft (mm)
|
Diameter of bottom shaft (mm)
|
Diameter of side-roller shaft (mm)
|
Coiling Speed (m/min)
|
Motor Powder (kw)
|
|
W12HXNC-60*3200
|
3200
|
3290
|
60
|
≤ 2*T
|
T50*B3200*φ min2400
|
T60*B3200*φ min2500
|
605
|
560
|
465
|
3.5/5
|
75
|
