Yantai Empire Hydro-Machinery Manufacturing Co., Ltd.
China Manufacturer with main products: Car body pulling bench, car dent repair tool, Frame Machine, Tools and Equipment, Collision Repair Equpiment, Auto Body Frame Machine, car... |

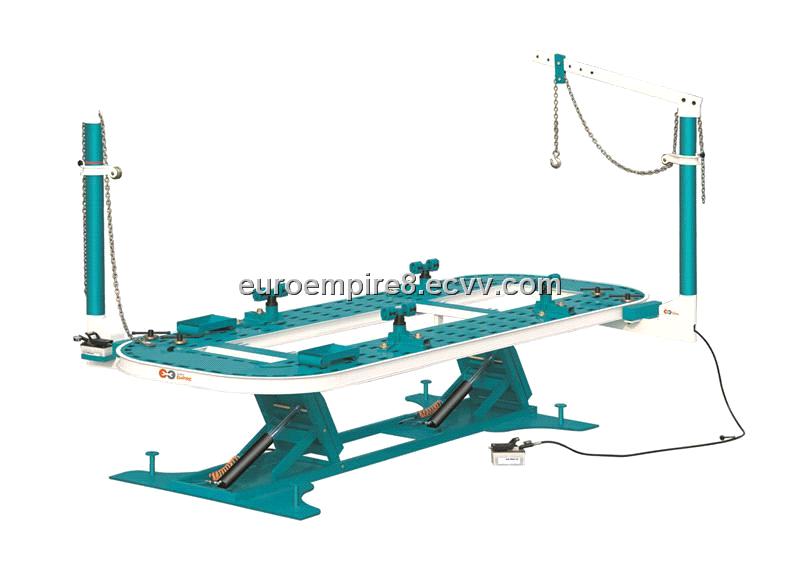

Auto body straightening bench ER301
| Supply Ability: | 100 Set/Sets per Month |
|---|---|
| Shipping: | FOB Qingdao |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | standard export package |
Specifications
Auto body straightening bench ER301
Details:
|
ER301
|
|
|
Deck Length (Feet/Meter)
|
18'/5.5m
|
|
Deck Width (Feet/Meter)
|
6'7’’/2.0m
|
|
Net Weight (LB/KG)
|
7055LB/3200KG
|
Technical Data:
Working Platform Height: 12"-40"/300 - 1020 mm
Hydraulic System MWP: 70 MPa
Tower Hydraulic Cylinder Max. Lifting Force: 95 KN
Tower Pulling Range: 360°
Inlet Air Pressure: 0.8 MPa
Max. Lifting Weight: 3500 KG
Features:
1. The platform is Manganese plate(I-Beam Tube is optional).
2. Designed with the striation structure, no dead point in pulling with this platform
and the tower can be moved and fixed at any point.
3. The hydraulic towers can be moved freely alongside the platform and turn 360° as operating. The hydraulic cylinders work vertically, resulting in maximum force and most powerful effectiveness.
4. High quality chains and plate tools are used flexibly and conveniently with long
life. The entire series of tools accessories enable to do any misshape correction work.
5. Hydraulic system with good design has powerful driving force, long life and low failure rate.
6. Portable measuring system is easier for workers.
7. Major clamps fix the auto quickly, firmly and accurately.
8. Applying parallel-connect synchronous hydraulic cylinder with high synchronous precision; the integral mechanical lock is processed one-time.
9. Without synchronous errors; the sharing beam adopts high quality manganese plate and all the welding positions ensure the position of shafts and holes.
10. Special design for lifting forces; in order to improve the service life of the oil cylinder, increase the oil cylinder diameter is increased and double oil cylinder lift
at the same time. Under 15Mpa-17Mpa pressures, it can meet the lifting requirements of 3000KG auto weight.
