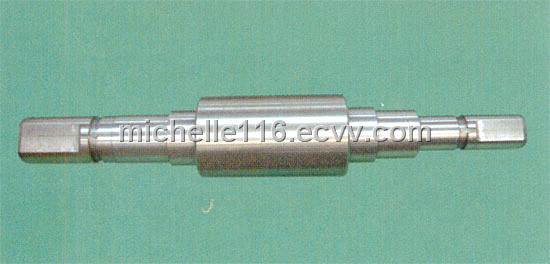

Centrifugal compound, common method indefinite chill cast iron roll and collars

Inquiry Now

Related products from verified members

flywheel

Price:1,000.00-100,000.00 USD/Ton

Min. Order:1 Ton
Die Casting

Price:1000.00 USD/Kilogram

Min. Order:1 Kilogram
Dia. 100mm Hot Rolled Forged Steel Grinding Med...

Price:650.00-780.00 USD/Ton

Min. Order:10 Tons
Agricultural Machinery Parts (Ningbo santon cas...

Price:2.00-2.50 USD/Ton

Min. Order:5 Ton
Forged Grinding Ball

Price:1.00-100.00 USD/Metric Ton

Min. Order:1 Metric Ton

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

Roll property

Outer layer possesses very high wear resistance, hot crack resistance properties. Roll work layer graphite quantity in the depth direction is nearly no change, therefore work layer hardness fall is small, roll hardness mainly depends on matrix organization type, pearlite, sorbite, bainite or martensite, neck adopts high-strength nodular iron, it possesses very high fracture resistance, accident resistance properties.

Mechanical property	Centrifugal compound	Common method
Body hardness:	HSD60-85	HSD 55-85
Neck hardness	HSD35-48	HSD 35-55
Core tensile strength	>=400Mpa	>=230Mpa

Application scope

Used for trip steel hot continuous rolling mill finish rolling rack, continuous bar finish rolling rack,high speed wire pre-finish rolling, small medium-rolling and finish rolling rack, also used for sheet, straightening roller.
