Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | Bulk shipment or Roro shipment |

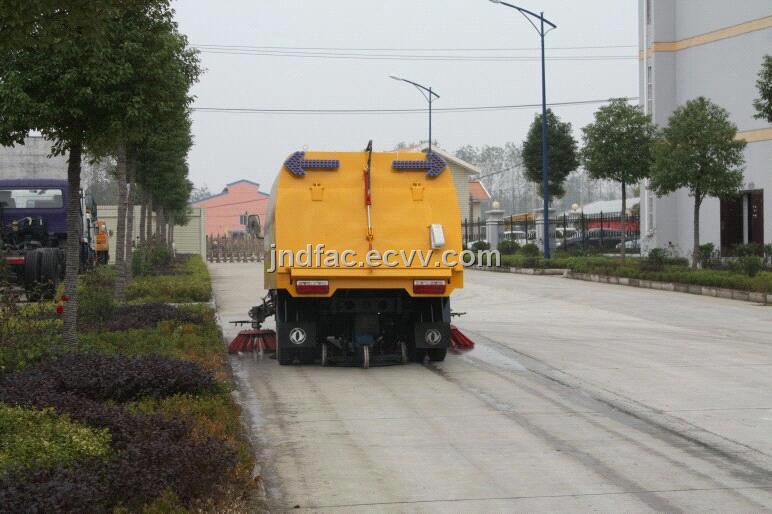

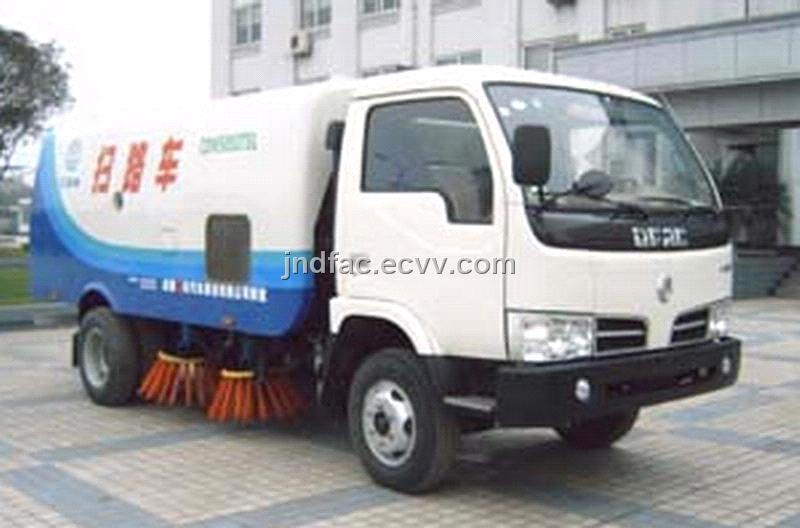

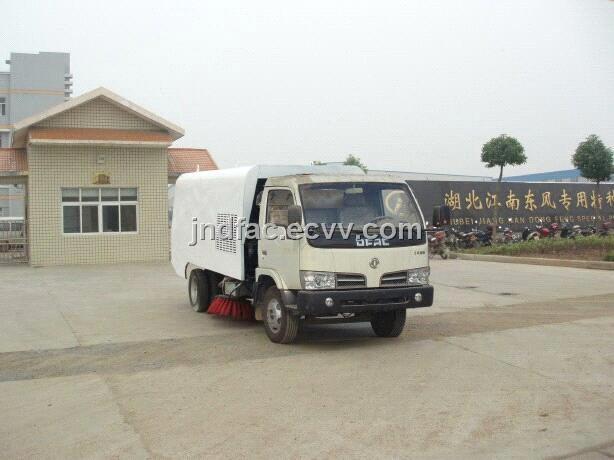

Specifications
—it can choose Qingling Brand, Jiangling Brand ,Dongfeng Brand chassis to refit
—The vice engine is JX493Q1/57, Jiangxi Jiangling Manufacture
—The vice engine is JX493Q1/57, Jiangxi Jiangling Manufacture
—With structural arrangement of “four mid-mounted disc brushes and rear-mounted
suction nozzle”, enables a large sweeping width , high sweeping efficiency and low energy consumption.
—The sweeping device is provided with automatic obstruction avoidance ,It can automatically retract the disc brush when the disc brush is obstructed, so as to avoid any damage to the sweeping device.
—The garbage box is stainless steel inner
—Hand pump emergency system
—automatic clutch is connected between vice engine and fans , which ensure engine safe.
—the garbage box capacity is 3m³ , the water tank capacity is 1 L
—Max. sweeping width is 3m
—Sweeping speed is 3-20km/h
Chassis:
—Chassis model EQ1070T35DJ3AC
—Engine: YC4F115-30 (Euro 2 emission standard)
—Displacement / hp : 2659ml/85kw
— Wheelbase :3300mm
— Exterior Dimensions (L X W X H) mm :5885 x 2090 x 2360
—Cab: single row , forward control cab
