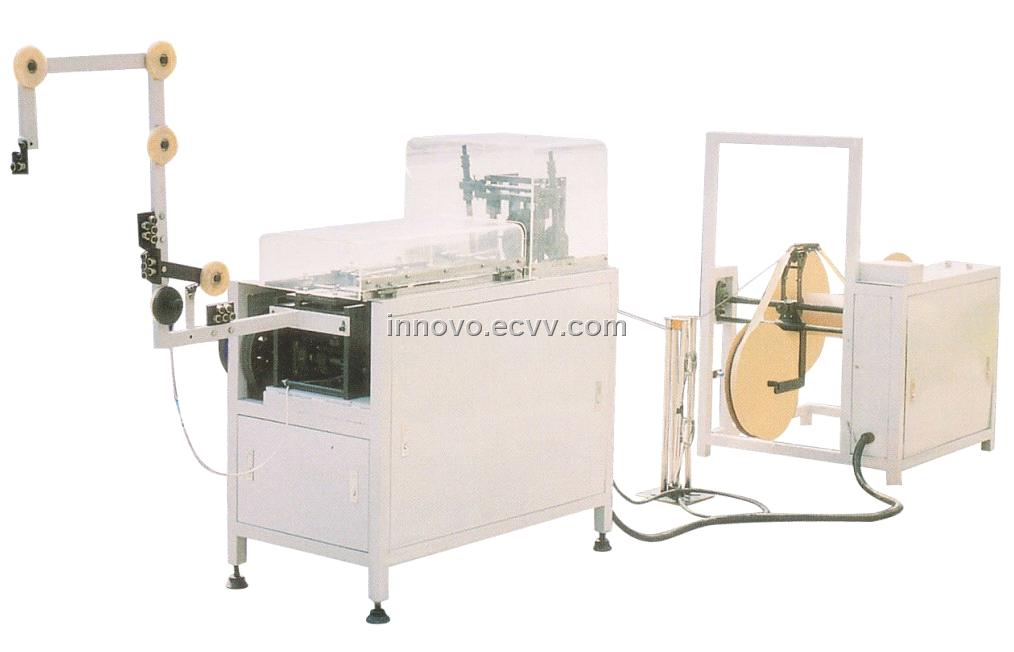

2003 Double Wire Forming Machine

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

2003 Double wire forming machine

Usage:

This machine is used for the formation of double wire. It can automatically feed in nylon-coated wire as raw material, and form, count, wind double wire loops onto a spool or into lenghes.

Major Technical Parameter

speed: 0~500pitches per minute

Power: Main machine--0.75KW

Receiving ring machine--0.37KW

Voltage: 220v

Weight: 620kg/700kg(3:1/2:1)

Outside Measurement(mm): 3.8 m³5.1 m³(3:1/2:1)

diameter(inch)	pitch	binding thickness(mm)	wire diameter(mm)
3/16	3:1	3.5	0.65~0.75
1/4	3:1	4.5	0.65~0.75
5/16	3:1	6.5	0.8~0.9
3/8	3:1	7.5	0.8~0.9
7/16	3:1	9	0.9~1.0
1/2	3:1	9.5	0.9~1.0
9/16	3:1	10.5	1.0~1.15
5/8	2:1	12.5	1.15~1.3
3/4	2:1	14.5	1.15~1.3
7/8	2:1	17.5	1.15~1.3
1	2:1	2	1.15~1.3
