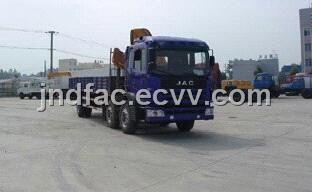

Cargo Truck with Crane / Truck Mounted Crane
| FOB Price: | 50,000.00 - 53,000.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set/Sets per Month |
| Shipping: | ro-ro shipment |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | Bulk shipment or Roro shipment skype:jessicasong0525 |
Specifications
Cargo Truck with Crane / Truck Mounted Crane
Chassis manufacturer: JAC (Anhui Jianghuai auto co.,Ltd)
can chosen stiff-boomed or knuckle-boom crane accroding to user's need
section of boom: 4
| Model | JDF5200JSQJAC | Chassis model | HFC1202KR1K3 | |||
| Wheelbase(mm) | 1700+5300 | Engine | Model | Displacement | horsepower | Emission |
| Drive Model | 6 ×2 | CA6DF3-20E3 | 6740 | 151 | Euro 3 | |
| Cab | Forward control cab , | |||||
| Tire |
10.00-20,10.00R20, 11.00-20,11.00R20 |
|||||
| Outline dimenssion (mm) | 11995×2495×3610 | |||||
| Gross weight(kg) | 20015 | CA6DF3-22E3 | 6740 | 177 | Euro 3 | |
| Curb Weight(kg) | 11630 | |||||
| Payload Weight(kg) | 8190 | |||||
| Crane Model | SQ8SK3Q | |||||
| Max lifting capacity (kg) | 8000 | |||||
| MAX Lifting moment (t.m) | 20 | |||||
| Recommend power (kw) | 28 | |||||
| Max Oil Flow of Hydraulic System (L/min) | 55 | |||||
| Max Pressure of Hydraulic System (Mpa) | 27 | |||||
| Oil Tank Capacity (L) | 160 | |||||
| Rotation Angle | All Rotation | |||||
| Crane Weight | 3300 | |||||
| Installation Space(mm) | 1200 | |||||
| Lifting capacility diagram | Working radius(m) | 2.5 | 4.5 | 7 | 9 | 11.5 |
| Lifting capacity(kg) | 8000 | 4400 | 2500 | 1750 | 1100 | |
